Description
Overview

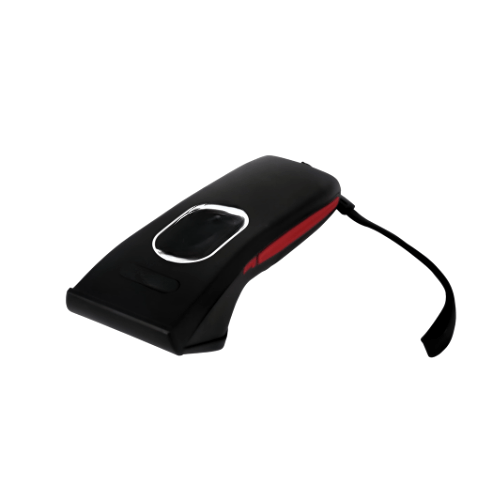

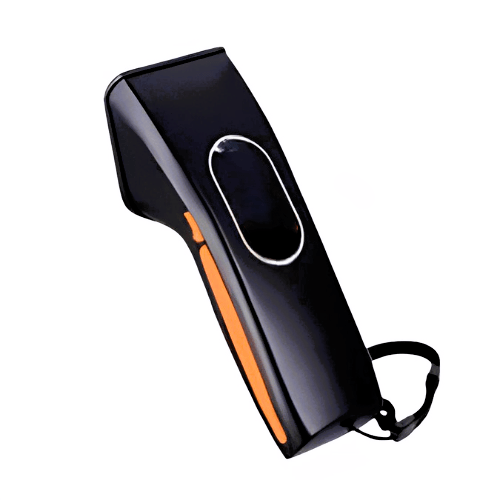

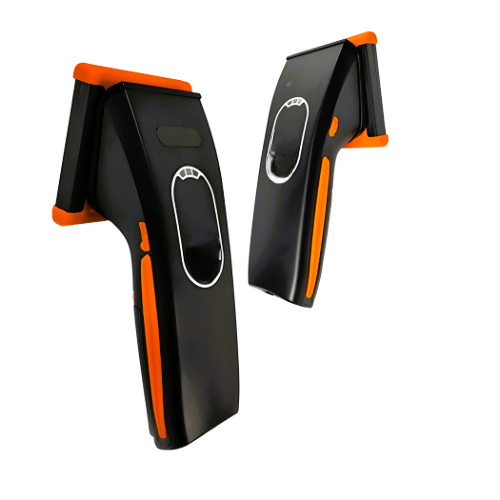

Amuse Tech Solutions UHF Handheld RFID Reader for Warehouse Management is an independent intellectual property rights, radio frequency globally adjustable. It has a long battery life built in 3200 mAh battery. It is a flexible wireless Bluetooth communication for connection with smart terminals, (smartphones, tablet computers) It is less costly and more economic than readers with PDA. It is fast and effective software integration; it is an android based and apple IOS platform is not supported. It provides demo software and SDK based on Android. It has multiple status indicator lights which are built in LED lights, buzzer and motor vibration for real working environment. It also views and confirms on PDA display easily when reading or writing.
Technical Specifications
| Interface | With USB, communication interface |
| Frequency | 902 MHzto 928 MHz |
| Protocol | EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C |
| Software | Android APP available |
| Wireless Communication | Bluetooth 4.0 |
| Reliable Firmware Upgrade | Scalable upgrade mechanism |
| Application Software Interface | Provide API development kits |
| Application | Warehouse Management |
| Standby Time | 150 hrs |
| Reading Range | 0 in to 3.9 in (0 cm to 10 cm) |
| Earthquake Resistant Height | 3.9 ft (1.2 m) |
| R/W Distance | Read distance 6.5 ft to 8.2 ft (2 m to 2.5 m) |
| Multi-tag Reading Speed | >50 tags per s |
| Operating System | Android 7.0 |
| Built-In Antenna | 2 dbi circular polarization ceramic antenna |
| Tag Reading Indicator | Vibration motor, Buzzer, LED |
| Output Power | 18 dBm to 26 dBm adjustable ± 1 dBm |
| Power Supply | DC 12 V |
| Color | Black |
| Operating Temperature | 4 °F to 140 °F (-20 ºC to +60 ºC) |
| Storage Temperature | -13 °F to 158 °F (-25 ºC to +70 ºC) |
| Humidity | 5 % RH to 95 % RH |
| Size | 7.0 in X 2.5 in X 2.5 in (180 mm X 65 mm X 65 mm) |
| Weight | 8.8 oz (250 g) |
