Description
Overview

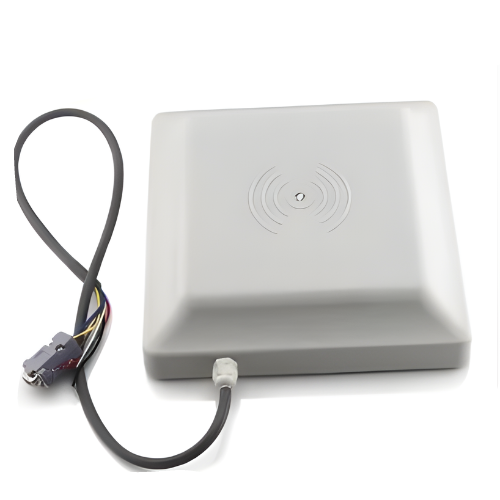

Amuse Tech Solutions Wiegand Long Range UHF RFID Parking Lot Reader is waterproof, IP65. It has free demo and SDK. Stable reading distance: 3.2 ft to 16.4 ft (1 m to 5 m) Frequency of 902 MHz to 928 MHz or customize other frequency. It has many advantages of more protocol supported, fast reading, more labels identification, round polarization antenna and compact design. This reader is widely used in all kinds of RFID system. Applications are Logistics and warehouse management; Parking control system; Manufacturing management; Products anti-counterfeiting detection; Other areas like club management, library, student school roles, supervision management and swimming pool system.
Technical Specifications
| Frequency | 920 MHz to 925 MHz or 902 MHz to 928 MHz |
| Protocol | ISO18000-6C (EPC GEN2); |
| Type | IC Card Reader |
| Card Type | EM |
| Interface | RS485, RS232, Wiegand26, Wiegand34, RJ45 |
| Reading Distance | 3.2 ft to 16.4 ft (1 m to 5 m) |
| Application | Parking |
| Waterproof | IP65 |
| Specification | 8.9 in X 8.9 in X 2.3 in (227 mm X 227 mm X 60 mm) |
| Frequency Jumping | FHSS or fixed frequency set by the software |
| Functioning | Automatically read card at regular time, can set reader card way |
| Frequency Performance | 0 dBm to 30 dBm, to be customized by software |
| Reading Sensitivity | Double polarization measurement |
| Reading Rate | A designation 64-bit ID number < 6 ms |
| Antenna | Integrated circular polarization antenna, gain 8 dB or Built-in linear polarization antenna, gain 12 dBi |
| Operating Voltage | DC +12 V |
| Display of The Work Status | Buzzer |
| Achievement | 1 W |
| Working Humidity | 20 % to 95 % (non-condensing) |
| Operating Temperature | -4 °F to 176 °F (-20 °C to +80 °C) |
| Storage Temperature | -40 °F to 257 °F (-40 °C to +125 °C) |
| Dimensions | 8.9 in X 8.9 in X 2.3 in (227 mm × 227 mm × 60 mm) |
