Description
Overview

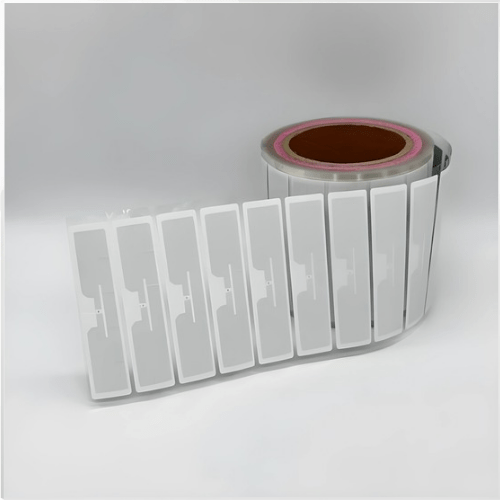

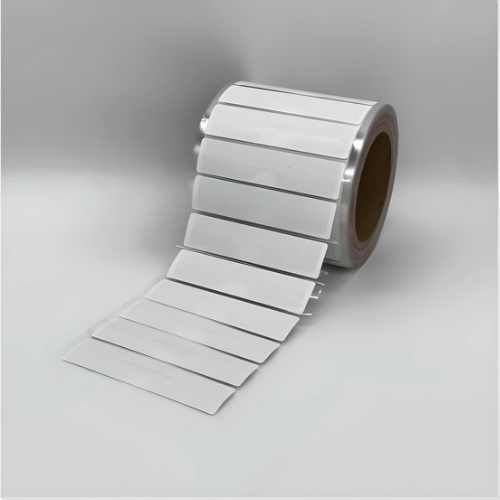

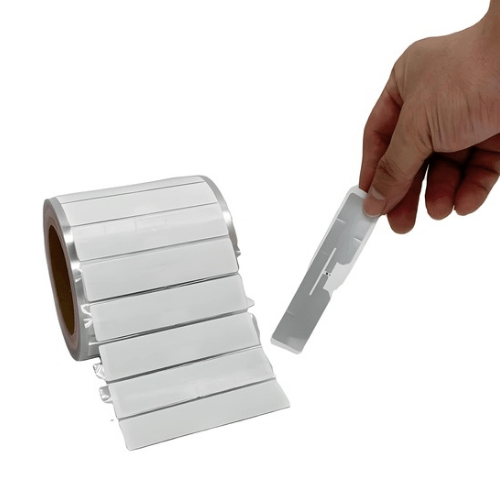

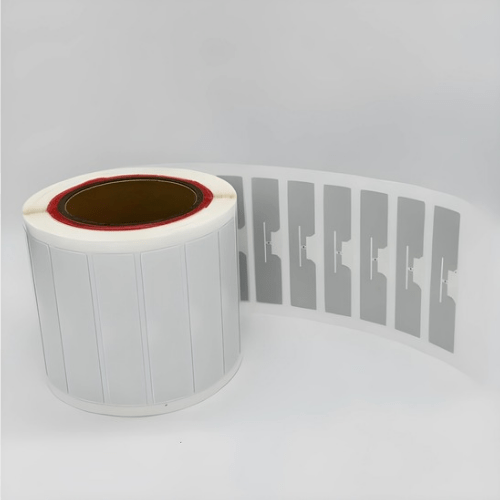

Amuse Tech Solutions RFID Sticker Chip UHF Vehicle Windshield Tag uses multi-layer material and aluminium antenna design, the antenna is designed by a special circuit, which can have superior reading performance in the glass medium. It can be used worldwide to realize vehicle entry and exit management and toll collection. It can support printing and writing data. It is widely used in ETC charges, vehicle access management, warehousing and logistics management.
Technical Specifications
| Frequency | 860 MHz to 960 MHz |
| Protocol | EPC Class1 Gen2, ISO 18000-6C |
| Communication Interface | RFID |
| Special Features | Waterproof or Weatherproof, MINI TAG |
| Material | PET |
| Product Material | Coated Paper + aluminium foil |
| EPC Area | 496 bits |
| User Area | 688 bits |
| Product Readability | > 39.3 ft (12 m) |
| Data Retention | > 10 years |
| The Number Of Erases | 100000 times |
| Data Retention | Adhesive pasting |
| Service Life | > 3 years |
| Environmental Standards | RoHS |
| Additional Processes | Print, Write, data |
| Encapsulation Process | Inverted packaging and multi-layer composites |
| Operating Temperature | – 4 °F to 122 °F (- 20 ℃ to +50 ℃) |
