Description
Overview

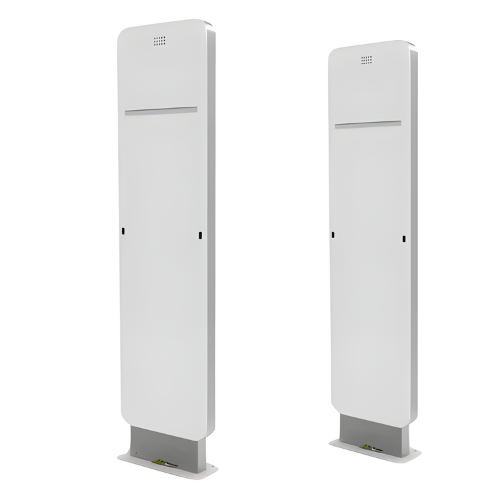

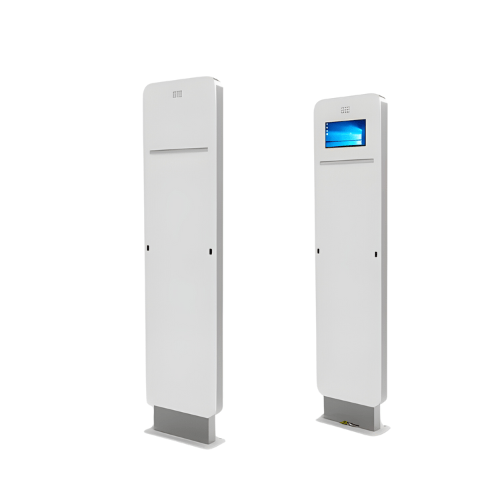

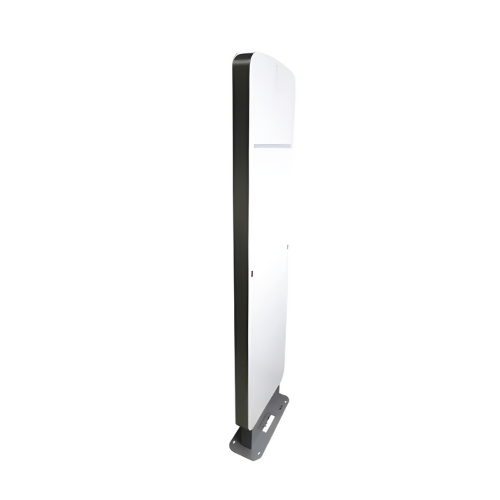

This wall mounted RFID portal has adjustable frequency range, tag reading distance and robust construction. Perfect for logistics and a durable design.
Features
- Touch screen switch
- Two color LED alarm light bar
- Infrared beam
- Accurate, no blind spots
Technical Specifications
| Frequency Range | 860 MHz to 960 MHz |
| RF Output | 0 dbm to 30 dbm (adjustable） |
| Communication Interface | RJ45 RS 232 or wireless transmission |
| Operating Voltage | AC 220 V ± 10 ％ |
| Power | 20 W |
| Accessories | Audible alarm |
| Android System (Optional) | Optional external touch screen (10.41 inch) Android operating system 450TP） |
| Installation Method | No slotting with 4.92 ft (1.5 m) stainless steel cable trough |
| Reading Distance Width | 3.28 ft to 13.12 ft (1 m to 4 m) |
| Operation Temperature | 14 °F to 122 °F (- 10 ℃ to 50 ℃) |
| Dimension | 14.57 in x 2.44 in x 58.43 in (370 mm x 62 mm x 1484 mm) |
| Weight | 77.16 lbs (35 KG) |
