Description
Overview

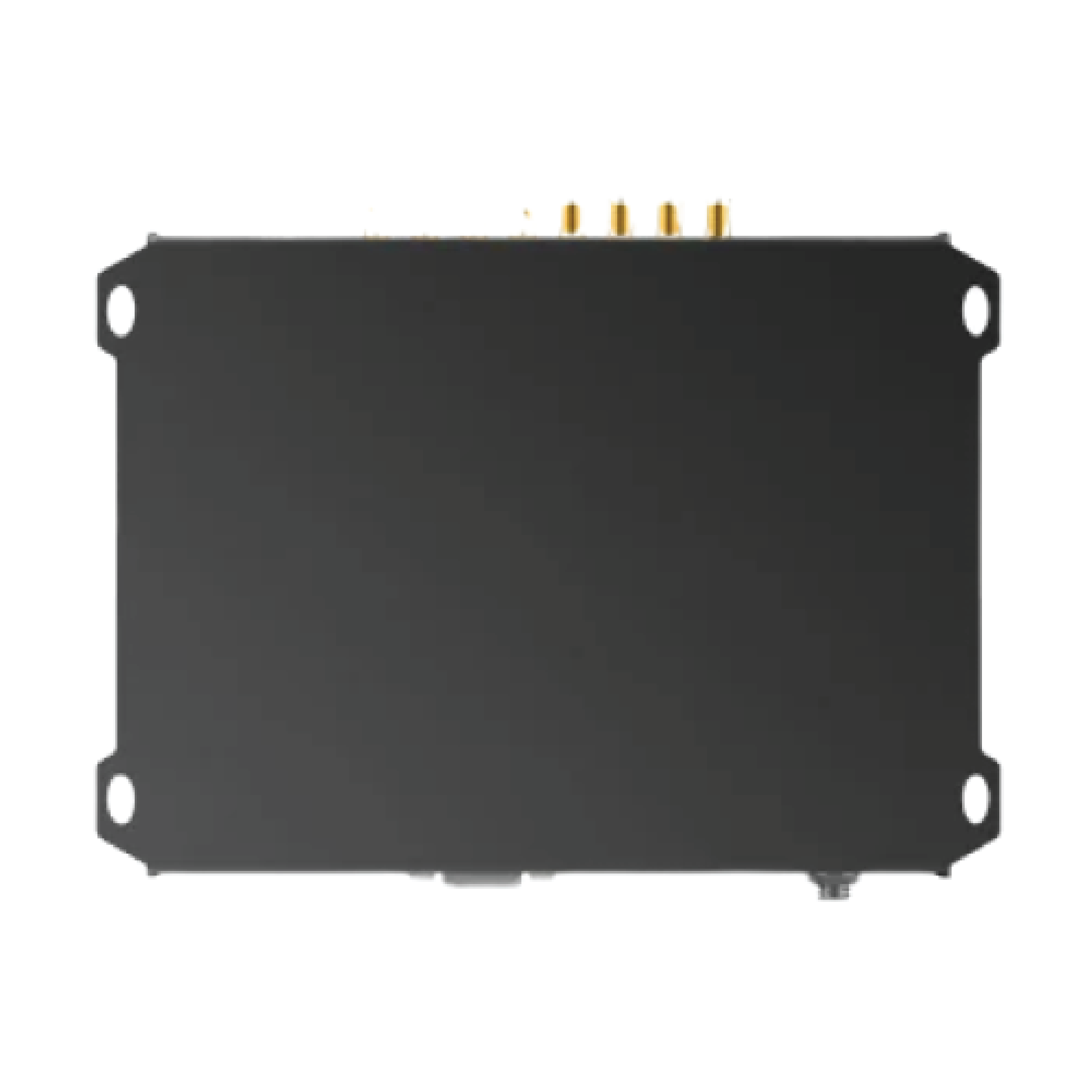

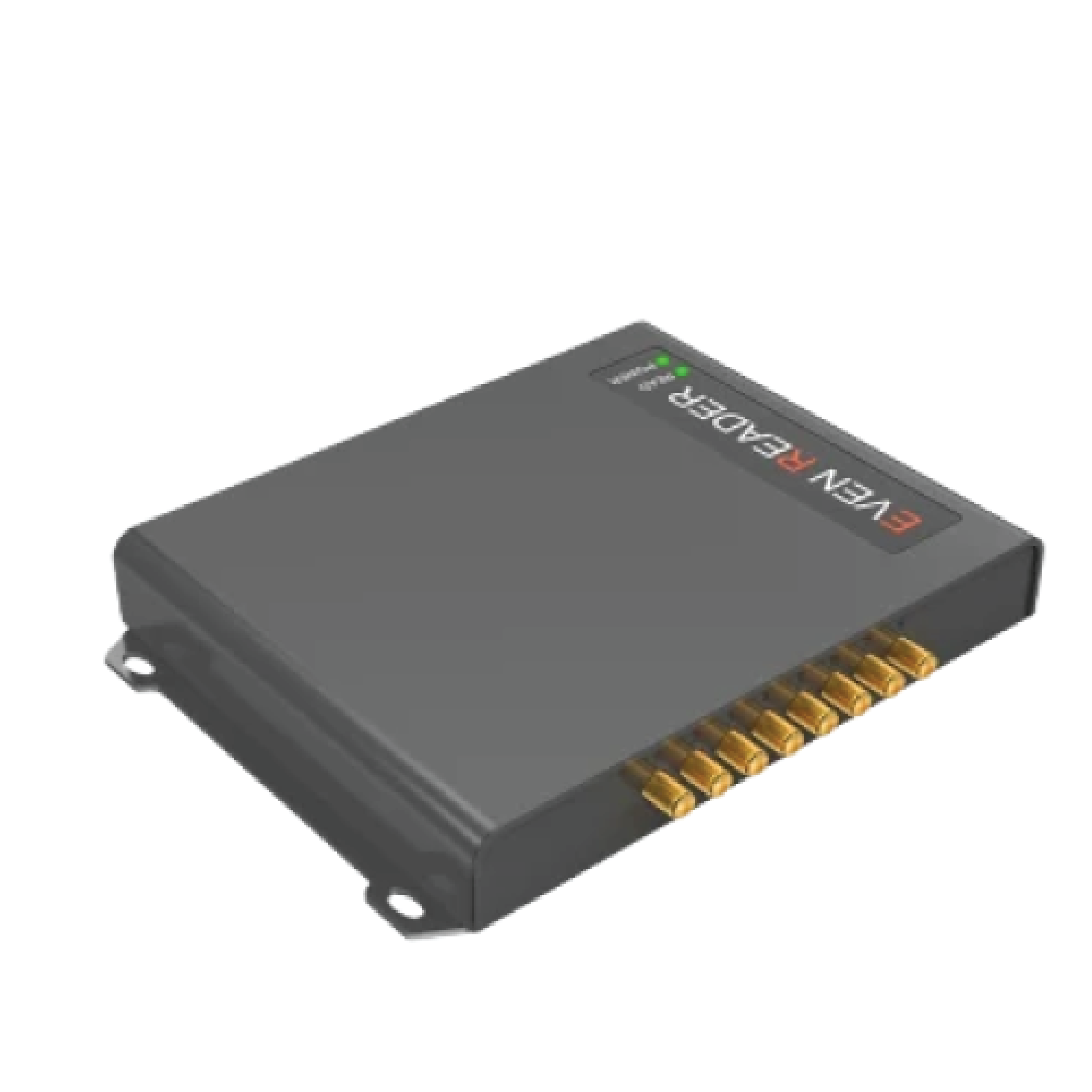

Amuse Tech Solutions Long Range Fixed RFID Reader is a high-performance long-range UHF RFID reader integrated with Impinj E710 module with Excellent reading performance. The reading distance is up to 10 meters. Supports fast tag reading/writing with high identification rate. The reader is widely used in RFID systems such as logistics, vehicle access control and anti-counterfeiting and industrial production Process control systems.
Technical Specifications
| Frequency Standard | 902 MHz to 928 MHz (US) 865 MHz to 868 MHz (EU) |
| Protocol Standard | ISO18000-6C (EPC GEN2) |
| RF Power | 33 dbm (adjustable) |
| Maximum Query Speed | 900 tags per s |
| Reading Distance | 0 ft to 82.02 ft (0 m to 25 m) (Depends on external antenna and tag) |
| Data Cache Size | 600 pcs at max 128 bits EPC or 180 pcs at max 496 bits EPC |
| Mixed Query | Support simultaneous query of EPC + TID area data |
| Operating Mode | Answer mode Real-time query mode Trigger mode (optional) |
| Judgment Distance | Support output RSSI value |
| Voltage | 12V 2A |
| Current Consumption | 0.5 A to 1.2 A |
| Communication Interface | Standard interface: USB, RS232, RS485, TCP/IP Optional interface: POE, WIFI |
| GPIO Interface | 2 sets of trigger signal input 2 sets of relay signal output |
| Antenna Port | 8 SMA female ports |
| Operating Temperature | 14 °F to 140 °F (-10 °C to 60 °C) |
| Storage Temperature | -4 °F to 167 °F (-20 °C to 75 °C) |
| Equipment Size | 7.24 in x 5.70 in x 1.02 in (184 mm x 145 mm x 26 mm) |
| Equipment Weight | 21.16 Oz (0.6 kg) |
