Description
Overview

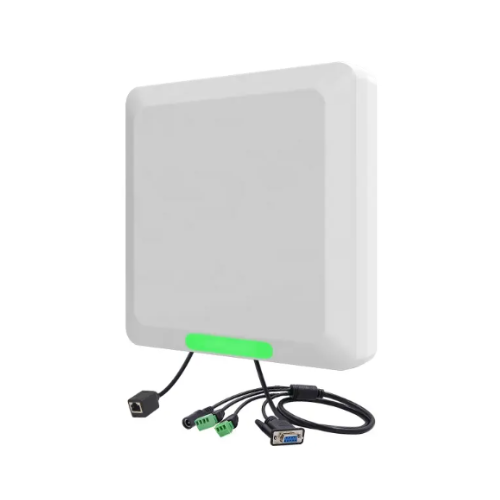

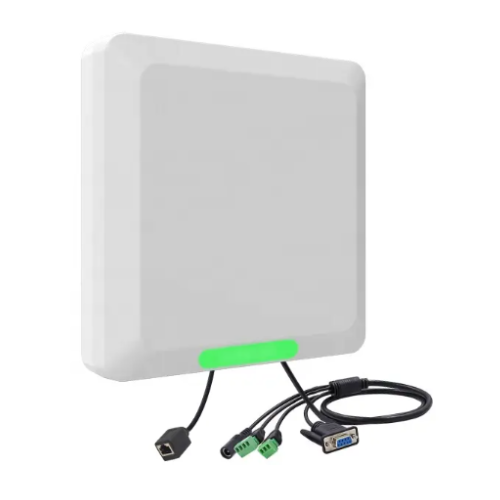

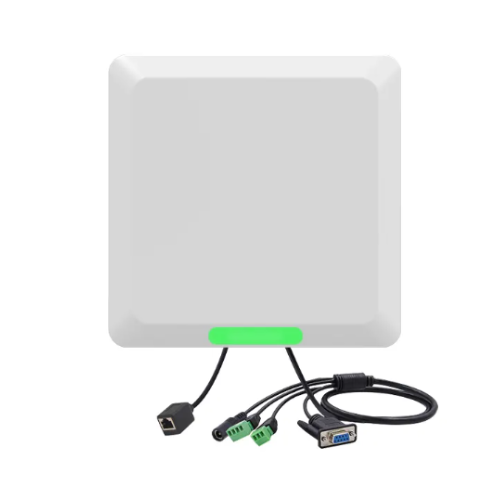

A RFID system with the UHF Wiegand reader, supports ISO18000-6C protocol. Offers a 6 dBi built-in antenna, adjustable RF power, versatile interfaces.
Features
- Automatic Scan Com port
- Supportive Firmware Upgrade
- Support Export Config or import Config
- Multiple Country Languages
- Global Frequency
- Password Mode
- Read Specify Tag
- Relay
- Data cache
- Multiple customizable communication protocols
- Remote Listening
- RSSI
Technical Specifications
| Frequency | 865 MHz to 868 MHz or 902 MHz to 928 MHz |
| Protocol | ISO18000-6C (EPC GEN2) |
| UHF | UHF wiegand reader |
| Interface | RS232 or WG or RELAY or TCP or IP or POE or USB or TTL or RS485 or WIFI |
| Gain | 6 dBi |
| Read Range | 16.4 ft to 19.6 ft (5 m to 6 m) (Depends on tag) |
| Color | White |
| Material | ABS |
| Power Supply | 9 V to 24 V |
| Technical Support | Yes |
| Built-In Antenna | 6 dBi circular Antenna |
| Work Mode | Active or trigger or answer or password or mask mode |
| RF Power | 26 dBm (adjustable) |
| Operating Temperature | 14 °F to 131°F (-10 °C to +55 °C) |
| Storage Temperature | -4 °F to 167 °F (-20 °C to +75 °C) |
| Reader Size | 8.6 in x 8.6 in x 2.2 in (220 mm x 220 mm x 56.4 mm) |
| Net Weight | 33.5 oz (950 g) |
