Description
Overview

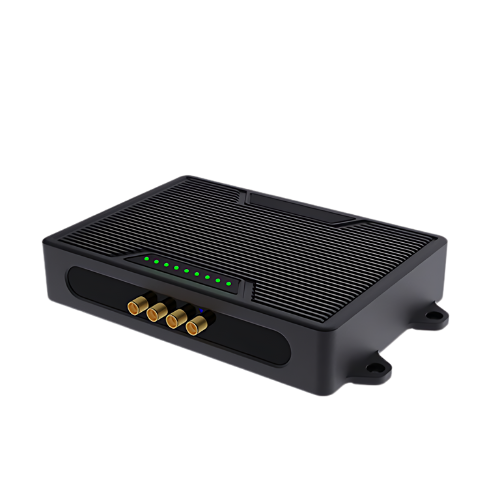

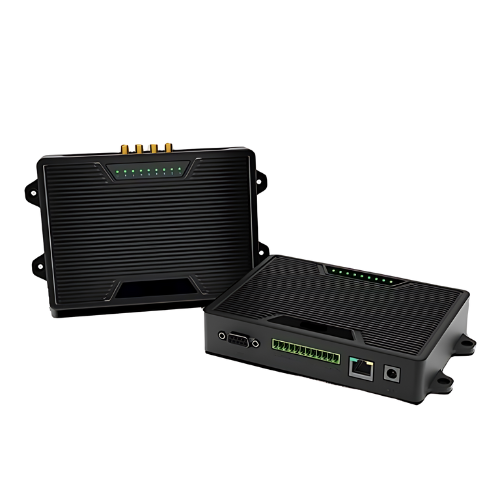

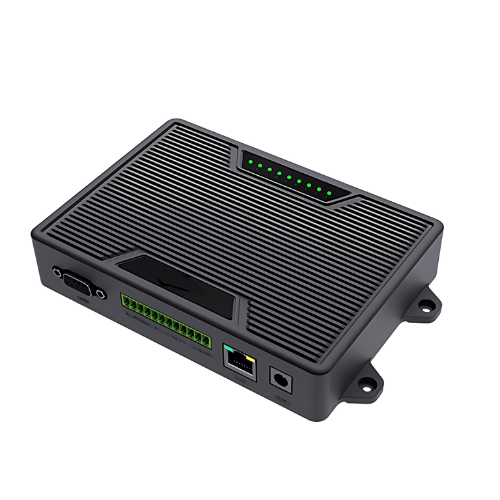

Amuse Tech Solutions Fixed UHF RFID Long Range Fast Speed Reader is compatible with ISO18000-6C protocol, working band compatible with national standard dual frequency 920 MHz to 925 MHz and 840 MHz to 845 MHz; FCC: 902 MHz to 928 MHz and ETSI: 865 MHz to 868 MHz, the output power is 0 dBm to 33 dBm optional, with long identification distance, fast speed, multi-tag recognition ability, strong anti-interference ability, high protection performance and easy installation and use.
Technical Specifications
| Frequency | GB,920 MHz to 925 MHz or 840 MHz to 845 MHz FCC,902 MHz to 928 MHz ETSI，865 MHz to 868 MHz |
| Protocol | All ISO18000-6C mandatory commands are supported |
| Materials | Alloy |
| Class Of Protection | IP53 |

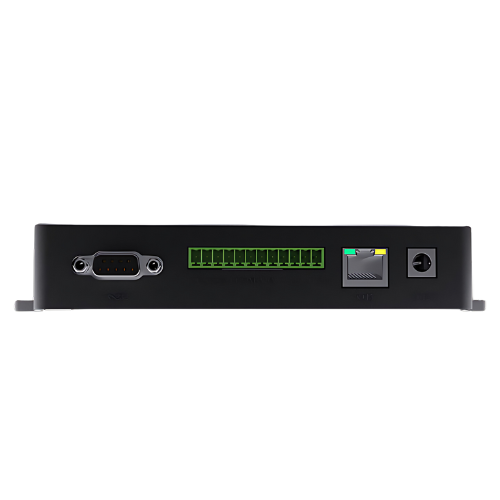

| Communication Interface | RJ-45, RS-232, RS485 (A/B), Wiegand (WG0/WG1) |
| Working Mode | Fixed frequency or frequency hopping is optional |
| I Or O Interface | GPIO: 4 output outlets (O1/O2/O3/O4), low by default. 2 input ports (IN1/IN2), default high, low effective; 1 DC 12 V or 500 mA output (12 V), which can be used as an external sensor power supply |
| Feature | Support intensive read and write Supports antenna detection Support online upgrade Supports label data filtering Support antenna Working instructions RSSI support: The strength of the signal can be sensed |
| RF Output Power (Port) | 33 dBm ± 1 dB (MAX） |
| Output Power Regulation | 1 dB step |
| Channel Occupied Bandwidth | ＜200 KHz |
| Band Stability | ≤ ± 10 ppm |
| Read Distance | 0 ft to 65.6 ft (0 m to 20 m) (depending on transmit power, antenna type, label type, application environment and other factors) |
| Write Distance | 0 ft to 32.8 ft (0 m to 10 m) (depending on transmit power, antenna type, label type, application environment and other factors) |
| Reading Speed | > 800 times per s |
| Network Interface Communication Rate | 32.80 ft to 328.08 ft (10 m or 100 m) adaptive |
| RS232 Interface | Baud rate 115200 bps(default) |
| Ethernet Interface | 32.80 ft to 328.08 ft (10 m or 100 m) Ethernet interface |
| Radio Frequency Interface | Four SMA antenna interfaces |
| Power Supply | DC 12 V（60 W） |
| Power Dissipation | 25 W (output power 33 dBm) |
| Operating Temperature | -4 °F to 140 °F (-20 °C to 60 °C) |
| Storage Temperature | -40 °F to 185 °F (-40 °C to 85 °C) |
| Humidness | 10 % to 95 % RH no condensation |
| Size | 7.04 in x 4.60 in x 1.22 in (179 mm × 117 mm × 31 mm) |
| Weight | 28.21 oz (800 g) |
