Description
Overview

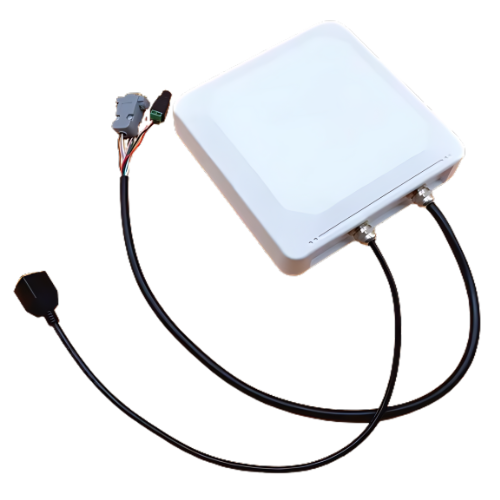

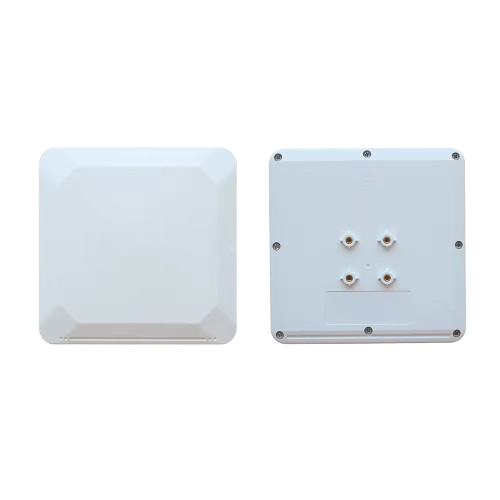

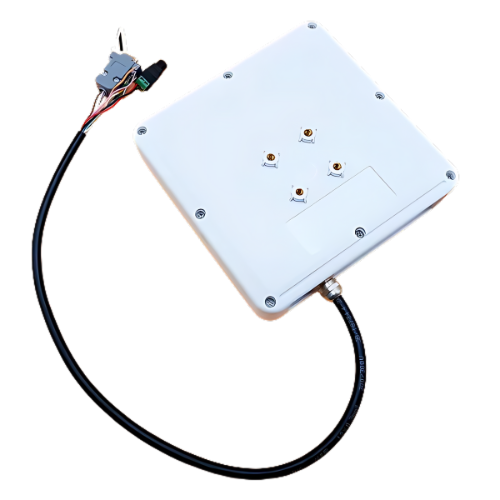

Amuse Tech Solutions Medium Read Long Distance Range Circular Polarization Passive Weigand Reader is a UHF RFID integrated reader. It is designed based on independent intellectual property rights and appearance patent. It features integrated RF reader antenna, small, light in weight, IP65, industrial control joint easy to deploy. Tag buffer size up to 800pcs /96 bits EPC. It performs excellent UHF R/W function, adapt to global working frequency. It is supplied with multi-language SDK (C#, C++, Delphi, VB, Java, Python), easy for secondary development integration. Support ARDUINO, ARM, Linux, Windows, Android, Raspbian development platform.
Technical Specifications
| Frequency | 865 MHz to 868 MHz or 902 MHz to 928 MHz |
| Protocol | EPC C1 GEN2 or ISO18000-6C |
| Built-In Antenna | 8 dBi circular polarization |
| Power | 30 dBm (adjustable by 1 dBm step with CPH demo software) |
| Antenna Rear Housing | Die-casting aluminum alloy |
| Installation Method | Holding pole |
| Radio Frequency | ACM independent R&D technology |
| Group Read Rate | 1 pc to 10 pcs EPC tag |
| Communication Interface | Standard: RS232, RS485, Wiegand, USB Optional: RJ45 (TCP or IP, WIFI, Bluetooth), 4G |
| Serial Rate | 9600 bps to 115200 bps |
| RJ45 Rate | 10 Mbps |
| GPIO (For Your Optional) | 1 relay output, 1 trigger input |
| Reading Indicator | Buzzer LED |
| Power Consumption | 1 W |
| Power Supply | 220 V AC input, +9 V to 25 V per 2 A adaptor DC output |
| Application Software | API development kit and application routine based on Windows |
| Sdk | C#, C++, Delphi, VB, Java, Python |
| Shell Material | ABS + PC |
| Antenna Front Housing Color | Gray |
| R/W Range | Read range 16.40 ft (5 m), write range > 19.69 in (> 500 mm) |
| Operating Temperature | 14 °F to 131 °F (-10 ℃ to +55 ℃) |
| Storage Temperature | -4 °F to 167 °F (-20 ℃ to +75 ℃) |
| Humidity | 20% to 95% RH, non-condensing |
| Dimension | 7.48 in x 7.48 in x 1.97 in (190 mm x 190 mm x 50 mm) (Exclude bracket and external wires) |
| Weight | 3.31 lbs (1.5 kg) |
