Description
Overview

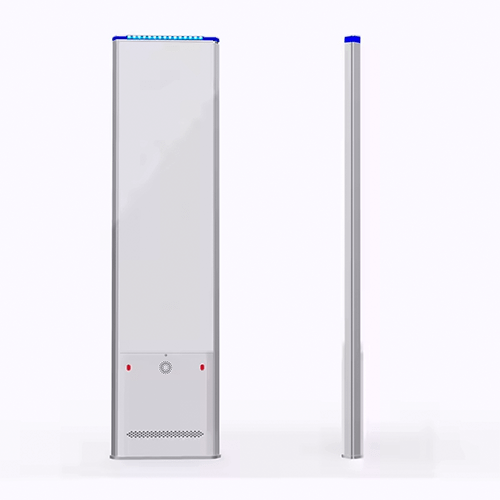

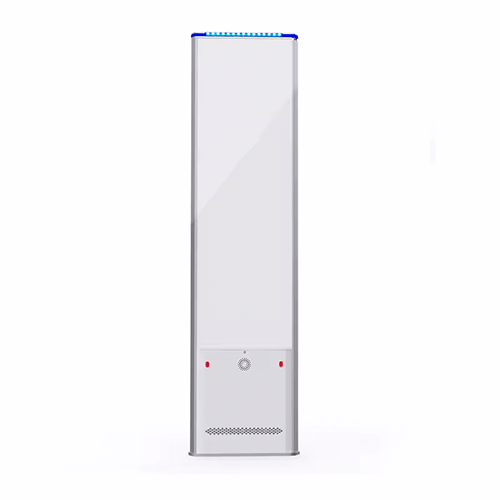

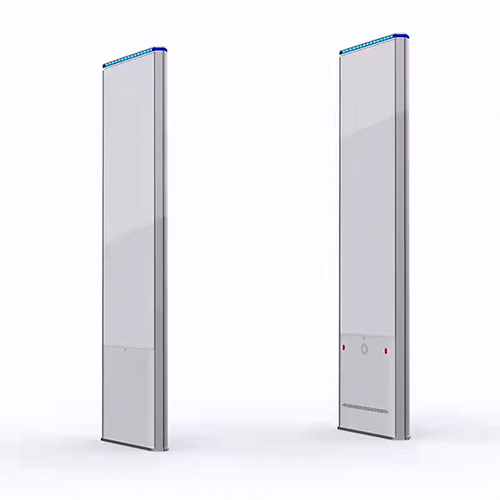

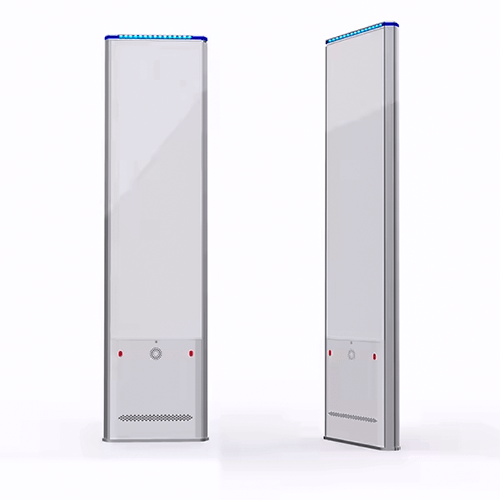

Amuse Tech Solutions anti-theft uhf rfid gate portal is supports multi-channel control functions, integrates high-gain antenna groups, and high-speed readers. It also has good reading performance and great read and write area control capabilities. Standard RJ45 or RS232 interfaces are available for easy connection to the software platform. The product is particularly suitable for various types of logistics, warehousing, books, files, and personnel attendance management.
Features
- Multiple channel
- Multiple protocol support
- LED display
- Low misreading rate
- Alarm lamp and buzzer embedded
Technical Specifications
| Frequency | 902 MHz to 928 MHz or Customized 865 MHz to 868 MHz |
| Protocol | ISO 18000 6 C |
| Antenna | 9 dBic narrowbeam antenna |
| Power Supply | AC 220 V ± 10% 47 Hz to 63 Hz |
| Output Power | 30 dbm |
| Power Consumption | Approx. 45 W |
| Interface | RS 232(DB9) RJ45 |
| Antenna Design | Horizontal narrow beam |
| Recommended Width Per Channel | 2.62 ft to 4.92 ft (0.8 m to 1.5 m) |
| Environmental Humidity | 5 % to 95 % RH no condensation |
| Storage Temperature | – 22 °F to 158 °F (- 30 ℃ to 70 ℃) |
| Working Temperature | – 4 °F to 140 °F (- 20 ℃ to 60 ℃) |
| Size | 57.09 in x 14.57 in x 2.95 in (1450 mm x 370 mm x 75 mm) (per piece) |
| Weight | 22.05 lbs (10 KG) (per piece) |
