Description
Overview

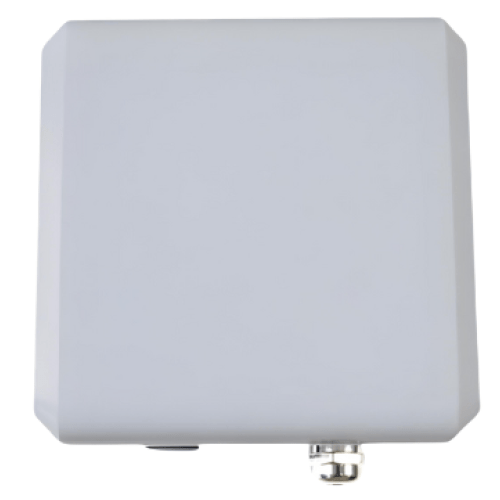

Amuse Tech Solutions UHF RFID 902-928Mhz Antennas waterproof parking gate vehicle access control reader long range tag for toll system is an industrial-grade, high-performance, all-in-one UHF RFID reading and writing device. The antenna part is designed with ABS engineering plastic, and the back cavity is designed with all aluminum alloy shell. The product is beautiful and compact, and it is dustproof and waterproof. Carrier elimination technology and a new anti-collision algorithm are adopted, and the circuit is designed to prevent lightning and surge. Make its read and write performance excellent, stable, reliable, with strong anti-interference ability, can fully meet the needs of various applications. The product provides complete software development materials, including DEMO, SDK and API, for the convenience of development and use.
Features
- Fully supports EPC C1 G2, ISO18000-6B/C and others
- Connected to external antenna or multichannel read and write module
- Convenient application of industrial production line
- Small size and easy to carry
- Low shaft ratio, low loss, high gain, wide application scenarios
Technical Specifications
| Frequency | 902 MHz to 928 MHz |
| Gain Polarization | 6 DBi circular polarization |
| HPBW | Horizontal 106 ° Vertical 106 ° |
| SWR | ≤ 1.5 |
| Impedance | 50 Ω |
| Axial Ratio | ≤3 DB |
| Maximum Power | 50 W |
| Connector | SMA and ANT (Customizable） |
| Material For Radome | PC and ABS or AL and IP67 protection |
| Lightning Protection | DC ground |
| Radome Color | White |
| Connector Place | Internal extraction |
| Operating Temperature | – 40 °F to 140 °F (- 40 ℃ to 60 ℃) |
| Size | 5.24 In x 5.24 in x 2.05 in (133 mm x 133 mm x 52 mm) |
