Description
Overview

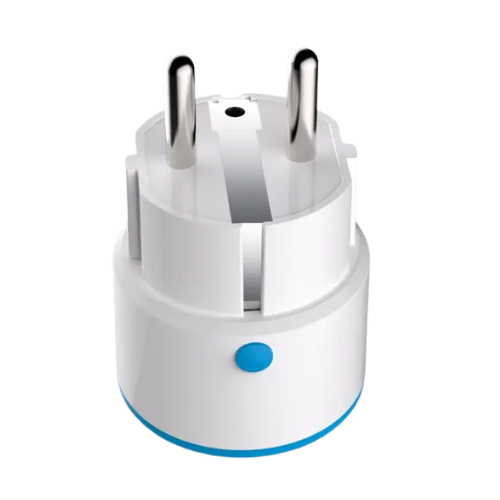

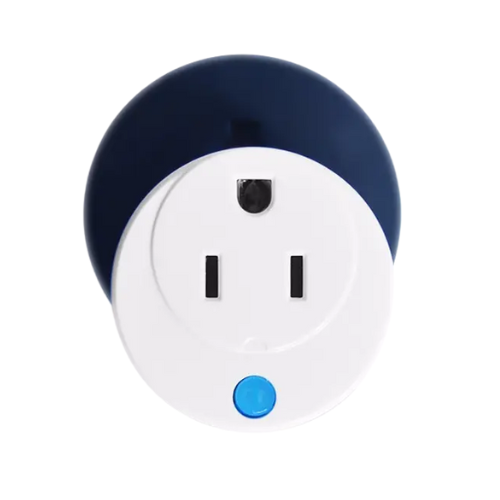

Amuse Tech Solutions smart plug z-wave plus universal relay switch 3000w power meter is a universal, Z-Wave Plus compatible and relay switch in the form of a socket adapter. The device may be used to operate any device up to 3000W power output. The device features voltage, current, active power and power consumption measuring.
This device can be included and operated in any Z-Wave network with other Z-Wave certified devices from other manufacturers and/or other applications. All non-battery-operated nodes within the network will act as repeaters regardless of vendor to increase the reliability of the network.
This device must be used in conjunction with a Security Enabled Z-Wave Controller in order to fully utilize all implemented functions.
Technical Specifications
| Measuring
|
Voltage, current, instant power, accumulated power |
| Power Supply
|
110 V AC to 230V AC, ±10%, 50/60Hz |
| Max current
|
10A/16A |
| Power Consumption
|
Up to 0.8W |
| Operational Temperature
|
32°F to 158°F (0℃ to 70℃) |
| Radio Protocol | Z-Wave |
| Wireless Distance | Up to 45m indoors, Up to 80m outdoors. |
| Radio Frequency | 868.4MHz EU
908.4MHz US 921.4MHz ANZ 869.2MHz RU |
