Description
Overview

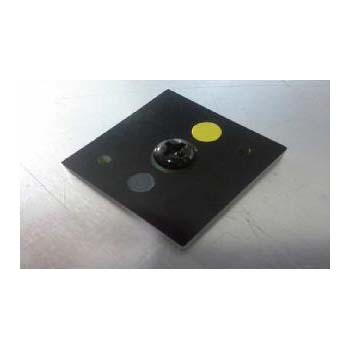

This passive UHF RFID tag is RoHS and EPC Class 1 Gen 2 protocol compliant and provides a memory capacity of 96 bits. When placed on metal applications, it provides a read distance of 2.0 m from a fixed reader and 1.0m from a handheld reader; while on non-metal applications, the read distance is 0.5 m from a fixed reader and 0.3 m from a handheld reader. It performs well in harsh environments and meets rigorous endurance requirements in terms of heat, pressure and chemical resistance.
Key Features
- Small size and light weight
- Waterproof and high temperature resistant
- Performs well even in harsh environments
- RoHS compliance
Technical Specifications
| Chip | Alien Higgs3 | ||
| Chip Memory | EPC 96 bits (Extensible to 512 bits)/User 512 bits/TID 64 bits/CRC 32 bits | ||
| Chip attachment | Aluminum wire bonding | ||
| Antenna | Gold plated etched copper | ||
| Protocol | EPC Class1 Gen2 | ||
| Read Distance | Fixed reader | Handheld reader | |
| On metal | 2 m | 1 m | |
| On non-metal | 0.5 m | 0.3 m | |
| Size W*H*D mm | 26*26 *3.1 | ||
| Material | Glass fiber – PCB FR4 | ||
| Operating Temperature | -40 °C to 85 °C | ||
| Storage Temperature | -55 °C to 180 °C | ||
| IP Classification | IP68 (tested for 24 h in 1 meter depth) | ||
| Humidity | 85 °C/85%RH tested for 168 ) | ||
| Boiling water | Tested in boiling water for 24 h | ||
| Pressure | Tested with 50 trials x 1 kg iron ball free falling on tag | ||
| Vibration | IEC60068-2-6/64 | ||
| Chemicals | Salt water (salinity 10%, 24 h)/NaOH (10%, pH13, 24 hrs)/Sulfuric acid (10%, pH2, 24 h)/Motor oil (24 h)/Methanol (24 h)/Ethanol (24 h) | ||
| Warranty | 18 months | ||
| RoHS | 100% compliant | ||
