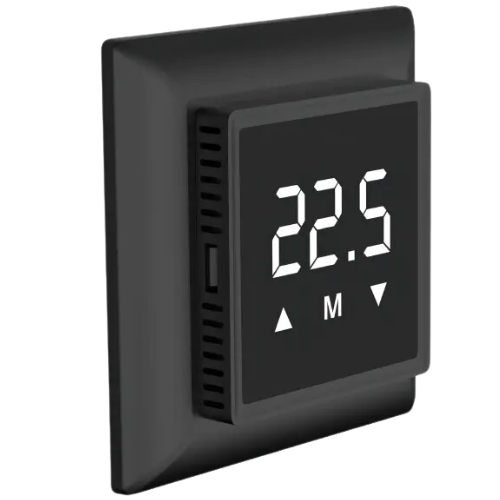

Description
Features
- App Remote Control
- Weekly Programmable
- Open Window Detection
- Precise Temperature Control
- Child Lock Function
Technical Specifications
| Voltage | 220 V |
| Relay Contact | Max 16 A 250 V AC |
| Floor Heating Valve | Thermostatic Mixing Valve |
| Type | Floor Heating Parts |
| Input | 230 V AC ± 10 %, 50 Hz / 60 Hz |
| Max. Load | 16 A |
| Load Type | Electric Heating Device |
| Inner Sensor | NTC, R25 = 10 KΩ ± 1 % at 77 °F (25 ℃), B25/50 = 3950 K ± 1 % |
| Wiring Requirements | Current ≤ 13 A to 15 AWG (1.5 mm²), Solid Wire |
| Method of mounting | Wall mounted |
| Material of casing | PC Fire-rated |
| Power | 220 V to 240 V AC 50 Hz to 60 Hz |
| Protocol | Z-Wave or Zigbee or Wi-Fi |
| Installation | Wall Mounted |
| Control Mode | Heating Mode, Cooling Mode, Regulator Mode, Quick Drying Mode |
| Material | Anti-flammable PC |
| Project Solution Capability | Graphic design, 3D model design, total solution for projects |
| Hysteresis | 32.9 °F to 50 °F (0.5 °C to 10 ℃) adjustable ± 33.8 °F (default ± 1 ℃) |
| Set temperature | 32.9 °F to 104 °F (0.5 °C to 40 °C) |
Reviews
There are no reviews yet.
