Description
Overview

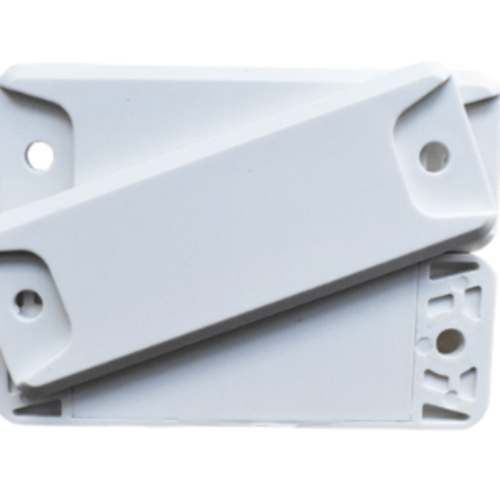

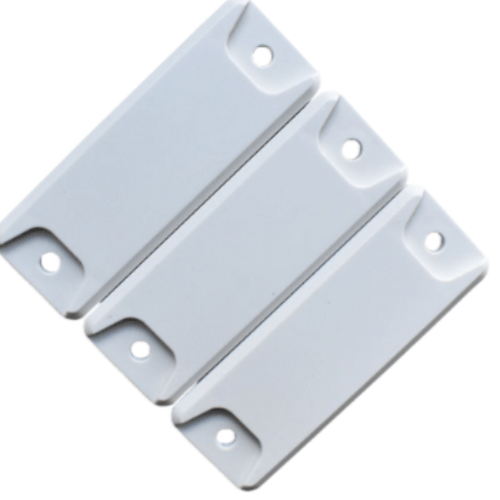

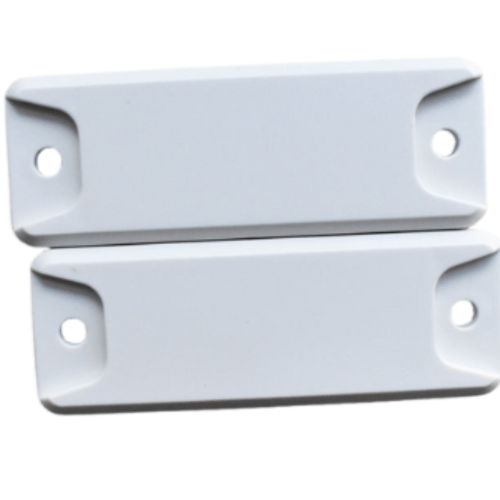

Waterproof RFID tags for outdoor use . Read distance of up to 9.8 ft (3 m), supports high temperature and anti-metal applications and long data storage.
Technical Specifications
| Frequency | 865 MHz to 868 MHz or 902 MHz to 928 MHz |
| Protocol | ISO18000-6C or EPC Class1 Gen2 |
| Chip | NX-P U-code 7M/8 or customized |
| Special Features | Waterproof |
| Communication Interface | RFID |
| Material | ABS |
| Application | Anti Metal, support high temperature, outdoor |
| Customized Support | Customized logo |
| Data Storage | EPC 96 bits, User 32 bits or EPC 128 bits, user 0 bits |
| Read Distance | 3.2 ft to 9.8 ft (1 m to 3 m) |
| Data Storage | More than 10 years |
| R Or W Cycles | Up to 100000 times |
| Installation | Screw, Rivet, 3 M adhesive |
| Working Temperature | -40 °F to -94 °F (-40 ℃ to -70 ℃) |
| Storage Temperature | -13 °F to -94 °F (-25 ℃ to -70 ℃) |
| Size | 2.7 in X 0.9 in X 0.1 in (70 mm X 25 mm X 5 mm) |
| Weight | 0.01 oz (5 g) |
