Description
Technical Specifications
| Protocol | Class UHF world 1 Gen 2 or ISO 18000-6C |
| Support Labels | Normal RFID tags Temperature sensor Humidity Sensor RFID tag |
| RSSI Test | Support |
| Frequency | EU 840 MHz to 868 MHz or US 902 MHz to 928 MHz or customised customer Fixed or FHSS |
| RF Power | 30 dBm ± 1dB (Max) |
| No Power | 1 dBm |
| Busy Channel Bandwidth |
<250 KHz |

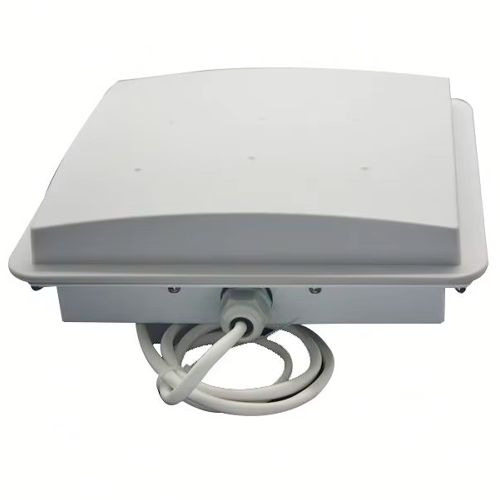

| Antenna | Circular polarized antenna 8dBi integrated |
| Read Speed | 100 tags per second |
| Interface | RS232, RS485, Weigand 26/34 and trigger RJ45 and Wi-Fi are optional |
| Speed Baud | 115200 bps |
| Operating Voltage | + 12.0 V |
| Operating Current | ≤ 0. 7 A |
| Standby Current | ≤ 100 mA |
