Description
Overview

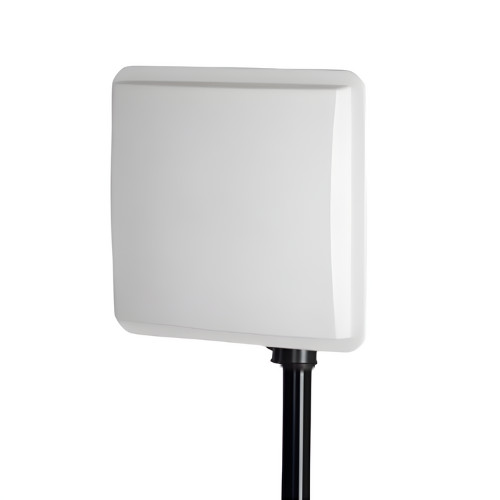

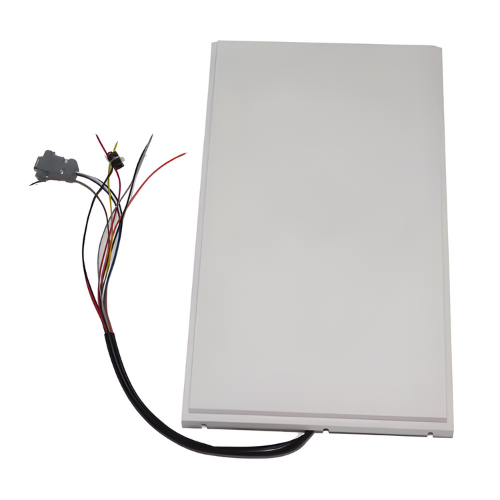

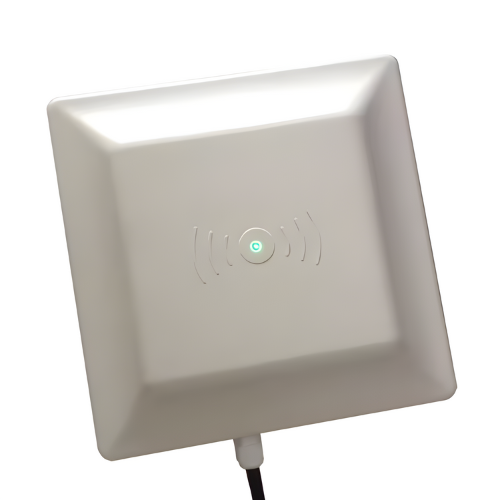

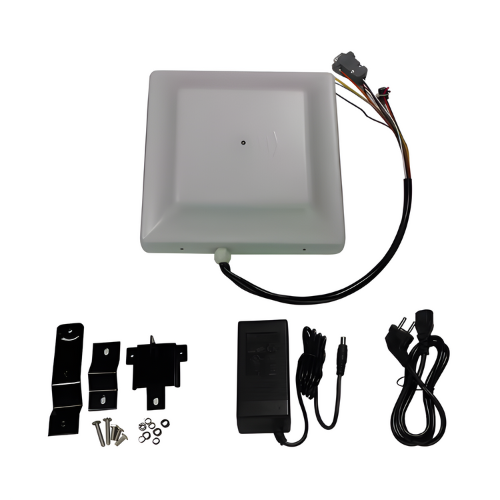

Amuse Tech Solutions RFID Reader UHF Reader Middle Range for Parking System is a new and innovative antenna built-in integrated RFID Reader that is compatible with IS018000 and EPC Class 1 Gen 2 of RFID tags. It solves many problems successfully associated with remote identification, identification of fast-moving objects and multi-card identification for The Passive RF tag. This RFID Reader’s design includes a Weigand port, an RS485 port and an RS232 output interface. Customizable for TCP or IP, WIFI and GPRS.
Technical Specifications
| Working Frequency | 902 MHz to 928 MHz or 865 MHz to 868 MHz |
| Standard | ISO18000-6B or ISO18000-6C or EPC Class1G2 |
| Interface | Wiegand 26 per 34 per 42, RS485, RS232 (TCP or IP, WIFI and GPRS is customizable) |
| Power Supply | DC -7.5 V to 12 V, 3 A |
| Antenna | 8 dBi to12 dBi circular polarization |
| Development Kit | Provide SDK development kit, and C#, C++, Java routines |
| Antenna Power | 1 W (adjustable by software) |
| Input/Output Interface | 1 way trigger input or 2-way replay output (customized) |
| Ani-Thunder | 6000 V |
| Reading Range | 9.84 ft to 19.69 ft (3 m to 6 m) or 32.81 ft to 82.02 f (10 m to 25 m) |
| Operating Temperature | -49 °F to 149 °F (-45 ℃ to 65 ℃) |
| Size | 8.66 in x 8.66 in x 2.5 in (220 mm x 220 mm x 40 mm) |
| Weight | 4.41 lb to 11.02 lb (2 kg to 5 kg) |
