Description
Features

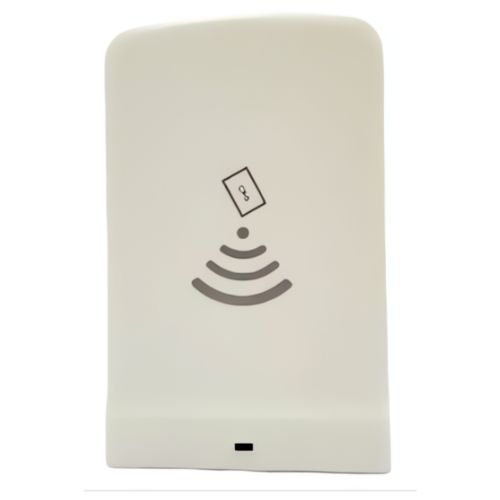

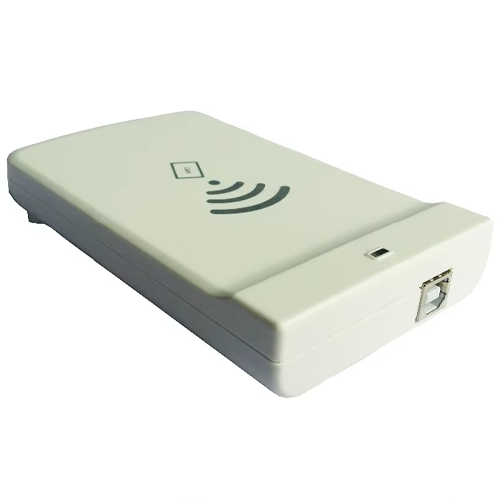

- UHF RFID high performance desktop reader embedded with module which designed by using Impinj INDY chip, maximum power supply is 25 dBm. 15 dBm is recommended as fixed power
- USB interface is available for power supply and communication, which reaches the most simply connection
- With internal 3dBi circular polarization antenna, tag reading distance is adjustable from 0 to 1 meter
- High read rate as 200 tag per s
- Two GPIO connect to LED light and buzzer, clients can easily control IO according to the special requirement
- Good writing performance, suitable as desktop reader or identifying device for high performance industrial application
Technical Specifications
| Frequency | 840 MHz to 960 MHz |
| Protocol | ISO 18000 to 6C |
| Channel Bandwidth | 250 KHz |
| Maximum Power Output | 25 dBm |
| Label Protocol | EPC C1G2 or ISO18000 to 6C |
| Maximum Reading Range | 39.37 in (1 m) |
| Step Interval | 0.5 dB |
