Description
Overview

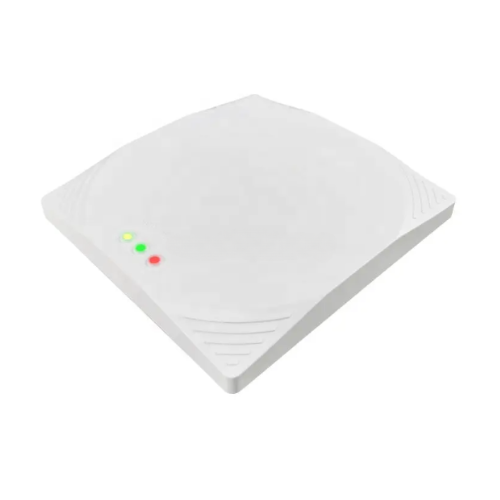

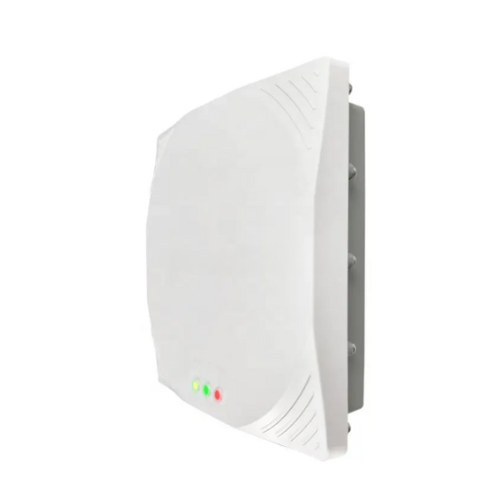

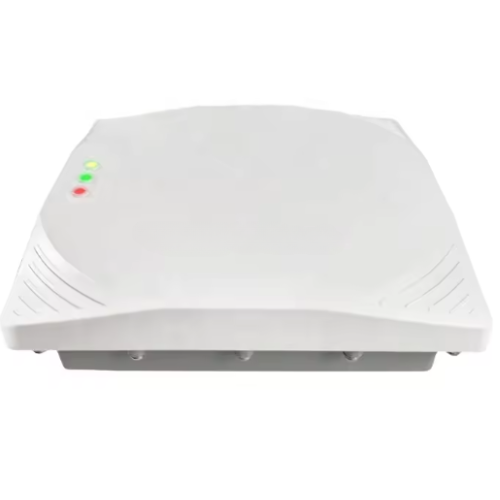

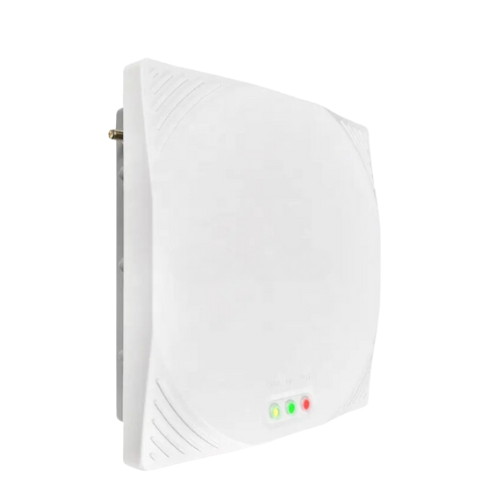

Amuse Tech Solutions Wiegand Long Range UHF RFID Reader integrates the antenna with reader together. It has small size, light weight, IP67 protection grade and can adapt to harsh environment. Complies with EPC global UHF ISO-18000-6C (EPC G2) tags. The work frequency 902 MHz to 928 MHz or 865 MHz to 868 MHz (customized optional). It supports RS232, RS485, Wiegand 26 or 34, TCP or IP or wireless communication method. It also has RF output 30 dbm adjustable, and support auto-work, command mode, and trigger mode. Applications are Logistic, access control, auto car parking system etc.
Technical Specifications
| Frequency | 865 MHz to 868 MHz or 902 MHz to 928 MHz |
| Protocol | EPC global UHF ISO-18000-6C (EPC G2) |
| Interface | LAN, RS232, RS485, Wiegand |
| UHF Reading Range | 3.2 ft to 26.2 ft (1 m to 8 m) (according to tags) |
| Connector | Waterproof |
| Protect Range | IP67 |
| Antenna Gain | 9 dbi |
| Application | Vehicle access control, asset tracking and so on |
| RF IC | PR9200 |
| Antenna Polarization | Right-handed polarization |
| Half Power Lobe Width (°) | Level: 65 ,Vertical plane: 60 |
| RF Output Adjust | FHSS or customized by software |
| RF Output | 27 dBm adjustable, 50-ohm load |
| Communication Port | RS232, RS485, Wiegand26 or 34, TCP or IP or wireless |
| Communication Rate | RS232 with 9600 bps to 115200 bps, RJ45 with 10 Mbps |
| Input or Output (GPIO) | I or O port (12 pin + 4 pin) |
| Power Consumption | Average < 10 W |
| SDK Language | VC, VB, JAVA, C#, C++ etc. |
| Read or Write Distance | 9 dbi antenna, (6 m to 10 m) reading range (depend on tag performance) |
| Power Supply | With 220 V AC input, the output of +12 V or 3 A DC power converter |
| Indicator Type | LED light Indicator |
| Antenna Shell Material | ABS |
| Antenna Shell Color | White or Grey |
| Installation Type | Pole installation |
| IP Protection | IEC IP65 |
| Lightning Protection | DC ground |
| Port Type | IP67 waterproof quick connector |
| Humidity | 5 % to 95 % Non-condensing |
| Work Temperature | -4 °F to 140 °F (﹣20 ℃ to﹢60 ℃) |
| Support Rod Diameter | 1.3 in X 1.9 in (35 mm to 50 mm) |
| Dimensions | 10.2 in X 10.2 in X 2.5 in (260 mm × 260 mm × 65 mm) |
| Weight | 6.6 lb (3 kg) |
