Description
Overview

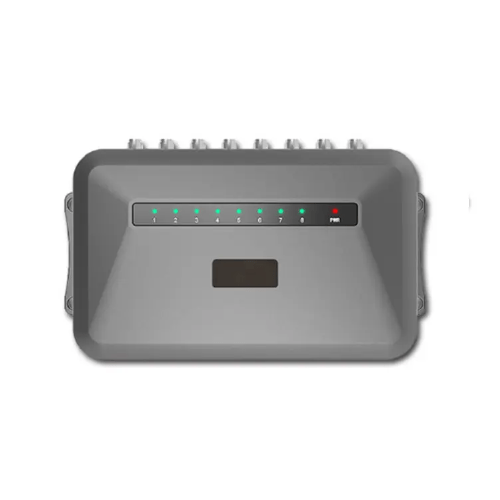

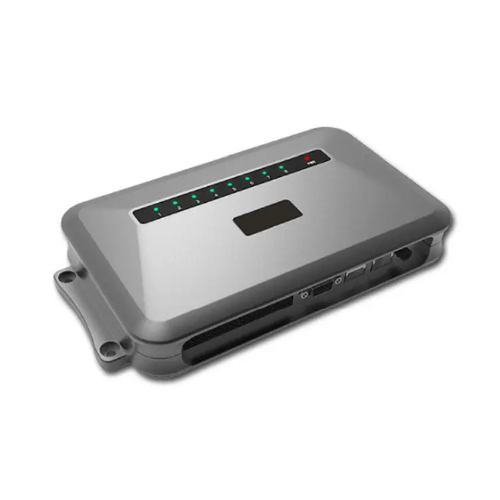

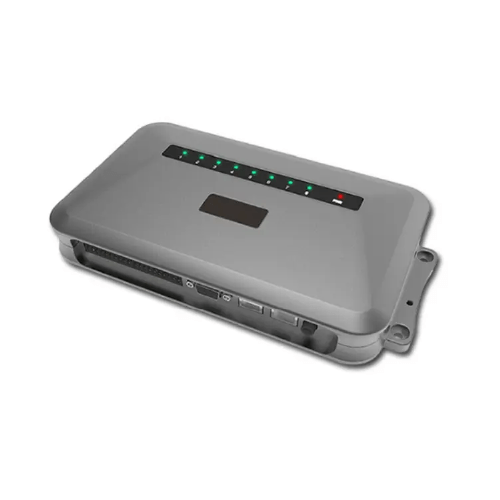

Amuse Tech Solutions passive transceiver integrated long range RFID UHF reader is a high-performance UHF RFID read and write device, support ISO 18000-6C/6B two kinds of protocol, working frequency: 920 MHz to 925 MHz, 840 MHz to 845 MHz, FCC: 902 MHz to 928 MHz, ETSI: 865 MHz 868 MHz, JP: 916 MHz to 920 MHz, output power support 0 dBm to 33 dBm, long reading distance, high speed, multi-tag recognition capability, anti-interference ability, protective performance, easy to install and use.
Features
- Bi-ampsynthetic circuits
- ARM9 platform processor, dominant frequency 400 MHz
- Support ISO 18000-6B/6C protocol
- Internal Linux 2.6 operating system, support customizable development
- Support RJ-45 or RS-232 or RS-485 or USB 2.0 Wiegand interface and other multiple communication interfaces
- Independent model, die-casting full aluminum, efficient, heat dissipation
- Support RSSI and assess the signal strength
- Support antenna detection function
- With extendibility of Bluetooth and WIFI wireless transmission
Technical Specification
| Operating System | Linux 2.6 |
| CPU | ARM9, 400 MHz |
| Storage | DDR SDRAM: 128 M, ROM: 256 M |
| Input Voltage | DC 24 V, 2.5 A |
| Protocol | ISO 18000-6B/6C |
| Frequency | FCC: 902 MHz to 928 MHzETSI: 865 MHz to 868 MHzGB: 920 MHz to 925 MHz, 840 MHz to 845 MHz |
| Output Power | 0 dBm to 33 dBm (±1.5 dBm) |
| Power Regulation | 1 dB stepping |
| Frequency Bandwidth | < 200 kHz |
| Frequency Stability | ≤± 10 ppm |
| External Interface | RS-232, RS-485, Wiegand, RJ-45, USB 2.0 |
| Work Mode | Fixed frequency or hopping mode |
| RJ-45 Communication Speed | 10M or 100M ethernet interface |
| Reading Speed | >400 times/s |
| I/O Interface | 4 optoelectronic inputs or 4 relay outputs |
| Anti-interference Ability | Good anti-interference algorithm, support reading multi-tag |
| Software | Support RSSI, antenna detection, online update, data filtering function |
| Radio Frequency Interface | 4 TNC antenna interface |
| Antenna | External antenna |
| Reading Distance | 0 ft to 49.21 ft (0 m to 15 m) (depends on tag performance and usage environment) |
| Writing Distance | 0 ft to 22.96 ft (0 m to 7m) (depends on tag performance and usage environment) |
| Documents | Demo software, API, development guidance and user’s manual |
| Protection Level | IP55 |
| Working Temperature | -4 °F to 158 °F (-20 °C to 70 °C) |
| Storage Temperature | -40 °F to 185 °F (-40 °C to 85 °C) |
| Atmospheric Pressure | 12.47 psi to 15.66 psi (86 kPa to 108 kPa) |
| Humidity | 5% to 95% RH no condensation |
| Size | 10.03 in x 5.7 in x 1.37 in (255 mm x 145 mm x 35 mm) |
| Weight | 3.086 lb (1.4 Kg) |
