Description
Overview

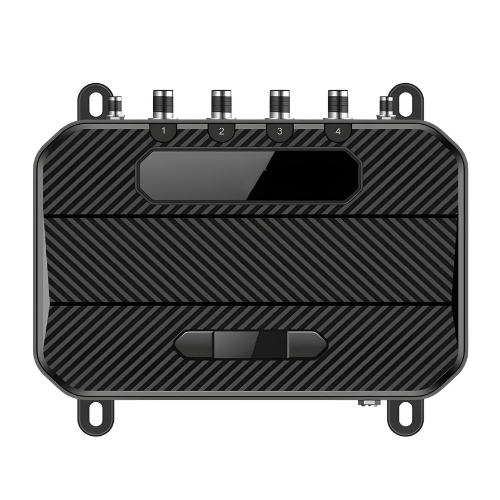

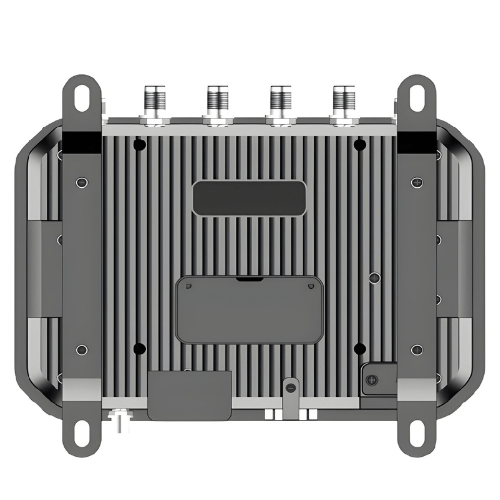

Amuse Tech Solutions Android 9.0 Long Range WIFI POE RJ45 4 Antenna Channel Ports Inventory Uhf Rfid Fixed Reader is a 4-channel fixed RFID reader, based on Android 9.0. Integrated with Impinj R2000 RFID chip, it supports RS232, RJ45 and HDMI, and can be compatible with various types of antennas. With high stability and outstanding performance, it can be ideally applied to warehouse management, archives and library management, bank, clothing and footwear retail, jewelry monitoring, watch industry, laundry, production line management, medical instrument cabinet and vending machines.
Technical Specifications
| Material | Aluminum alloy |
| Input Voltage | DC 10V to 24V |
| Standby Current | <30 mA |
| Work Current | 1300 mA +/-5 % at DC 12 V Input |

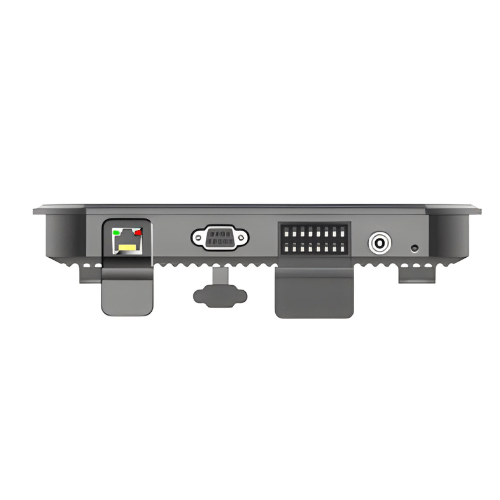

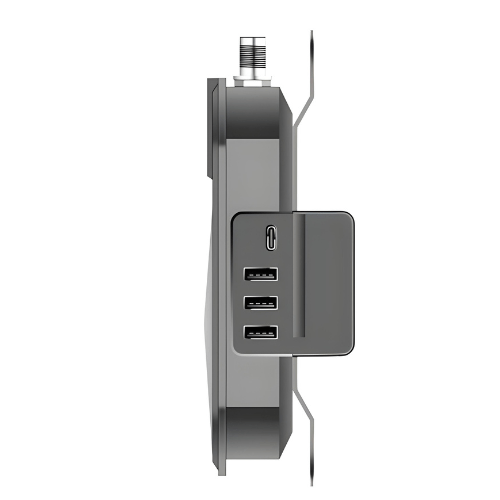

| Comm Interface | 1 x RS-232, 1 x RJ45, 3 x USB2.0 Type A, 1 x Type C, USB Host |

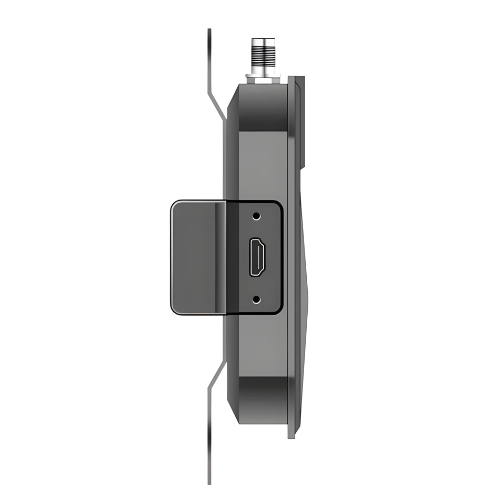

| Display Interface | HDMI Type A, support 720P |
| GPIO | 4 Input Optical-couplings, 4 Output Optical couplings, isolation, 1 Wigan |
| Baud Rate | 115200 bps |
| Cooling Mode | Air cooling |
| Power | DC (12V), POE (802.3af 13W), POE+ (802.3at 25.5W) |
| CPU (Performance) | Qualcomm 1.8 GHz Octa-core |
| RAM+ROM (Performance) | 3 GB + 32 GB 2 GB + 16 GB (optional) |
| Operating System (Developing Environment) | Android 9.0 |
| SDK (Developing Environment) | TASEI Software Development Kit |
| Language (Developing Environment) | Java |
| Tool (Developing Environment) | Eclipse or Android Studio |
| Protocol (UHF) | EPC global UHF Class 1 Gen 2 / ISO 18000-6C |
| Frequency (UHF) | 865 MHz to 868 MHz or 920 MHz to 925 MHz or 902 MHz to 928 MHz |
| Output Power (UHF) | 1 W (30 dBm, support +5 dBm to +30 dBm adjustable, POE/DC power) 2W Optional (33 dBm, support +10 dBm to +33 dBm adjustable, POE+/DC power, for Latin America, etc). |
| Output Power Precision (UHF) | +/- 1dB |
| Output Power Flatness (UHF) | +/- 0.2dB |
| Receive Sensitivity (UHF) | <-84dBm |
| Fastest Read Rate (UHF) | 900+ tags per s |
| RSSI (UHF) | Supported |
| Ambient Temp Monitor (UHF) | Supported |
| Antenna Detector (UHF) | Supported |
| Antenna (UHF) | Supporting a variety of antennas, such as 6dBic, 9 dBic |

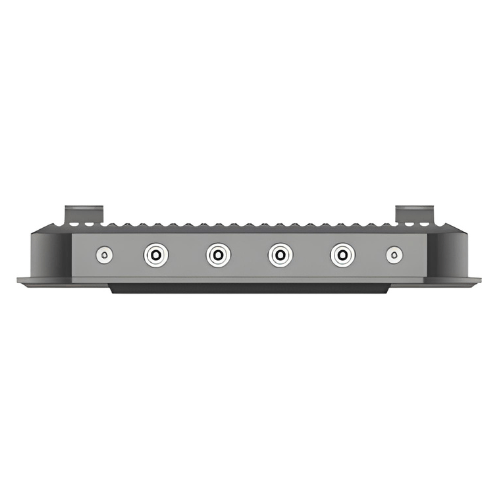

| Antenna Port (UHF) | 4 channel 50 Ω TNC port |
| Ethernet interface (Communication) | 10 or 100 Base-T Ethernet (RJ45) |
| WLAN (Communication) | Support 802.11 a/b/g/n/ac/d/e/h/i/k/r/v,2.4G/5G dual-band, IPV4,IPV6; Fast roaming: PMKID caching, 802.11r, OKC; Operating Channels: 2.4G (channel 1 to 13), 5G (channel 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 149, 153, 157, 161, 165), Depends on local regulations; Security and Encryption: WEP, WPA/WPA2- PSK (TKIP and AES), WAPI-PSK—EAP-TTLS, EAP TLS, PEAP-MSCHAPv2, PEAP-LTS, PEAP-GTC, etc. |
| WWAN (Europe, Asia) (Communication) | 2G: B1/B5/B8 3G: CDMA EVDO: BC0 TD-SCDMA: B34/B39 WCDMA: B1/B5/B8 4G: TDD-LTE: B34/B38/B39/B40/B41 FDD-LTE: B1/B3/B5/B7/B8/B20 |
| WWAN(America)(Communication) | 3G: B2/B4/B5 4G: B2/B4/B5/B7/B12/B13/B17/B28a/B28b |
| Operating Temp. (User Environment) | -13 °F to 149 °F (-25 °C to 65 °C) |
| Storage Temp. (User Environment) | -40 °F to 185 °F (-40 °C to 85 °C) |
| Humidity (User Environment) | 10 % to 95 % |
| Dimensions (User Environment) | 8.4 in x 5.8 in x 1.1 in (214 mm x 148 mm x 30 mm) |
| Weight (User Environment) | 35.27 oz (1000 g) (without antenna) |
