Description
Overview

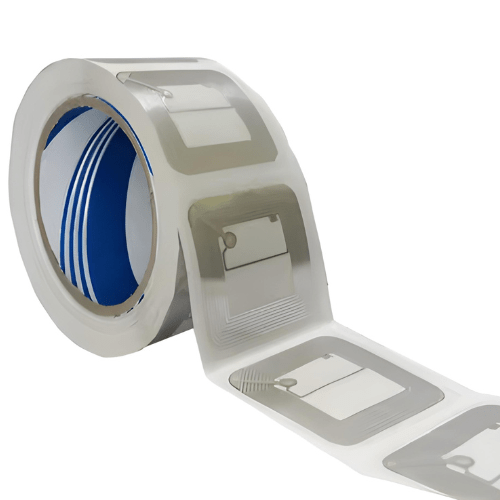

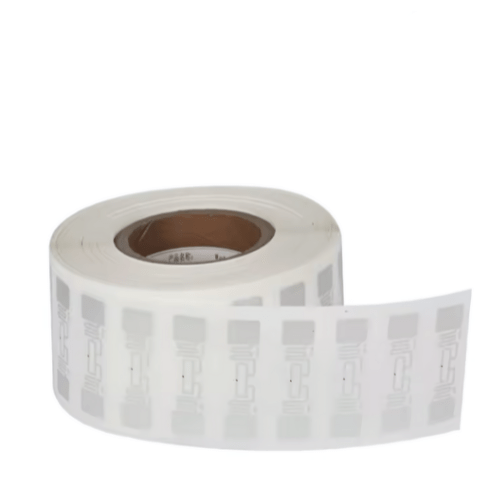

Amuse Tech Solutions retail apparel UHF active RFID tag delivers industry leading EPC Gen 2 performance and reliability for retail and apparel applications where items are tightly packed on shelves or hangers. With its Higgs-4 core, the “GT” delivers next generation read and write performance, yet is completely optimized for the highest volume enterprise, retail, and automotive applications. An optimized memory footprint includes a 32-bit TID, a 64- bit Unique TID for authentication and next generation serialization applications, a 128-bit EPC memory bank, 128-bits of user memory for distributed data applications, and password protected read and write support capabilities to prevent unauthorized viewing and modification of the tag’s data.
Features
- Designed to meet EPCglobal Gen2
- Worldwide operation in the RFID UHF bands
- 448-Bits of NVRAM Memory
- 32 Bit Access and 32 bit Kill Passwords
- Pre-Programmed with a unique 64-bit serial number
- User Memory can be Block Perma-Locked
- Class leading read and write performance
- Pre-encoded Multivendor Chip Serialization
- Dynamic Authentication
- Exceptional operating range
- Available in high yield
Technical Specifications
| Air Interface Protocol | EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C) |
| Operation Frequency | 860 MHz to 960 Mhz |
| IC Type | Alien H4 |
| Memory | EPC 96–480-Bit, User 512 bit, TID 32 bit |
| EPC Memory Content | Unique, Randomized Number |
| Max Read Distance | 13.1 ft to 32.8 ft (4 m to 10 m) |
| Application Surface Materials | Glass, Plastic, Wood, Cardboard |
| Tag Form Factor | Dry Inlay or Wet Inlay or White Wet Inlay (label) |
| Tag Materials | TT Printable White Film |
| Attachment Method | General Purpose Adhesive or Enclose Coated Paper |
| Antenna Size | 1.9 in x 0.8 in (50.7 mm x 22.5 mm) |
| Operating Temp | -40 °F to 158 °F (-40 °C to +70 °C) |
| Storage Condition | 20 % to 90 % RH |
