Overview

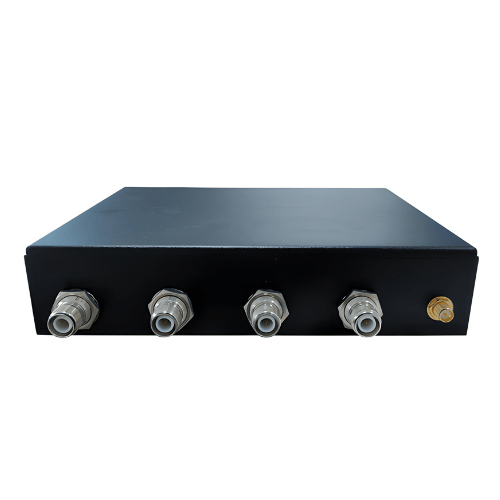

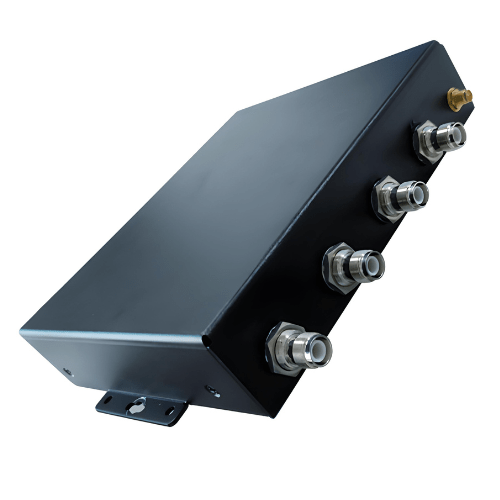

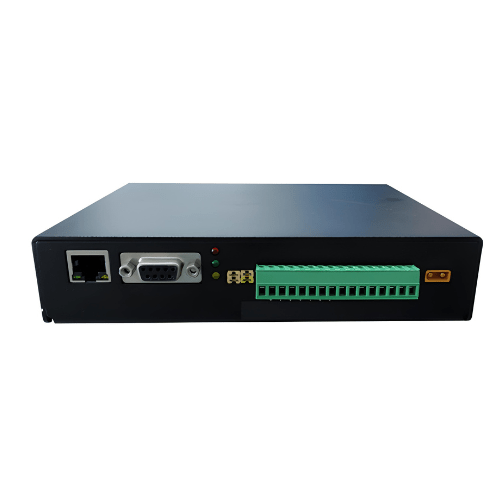

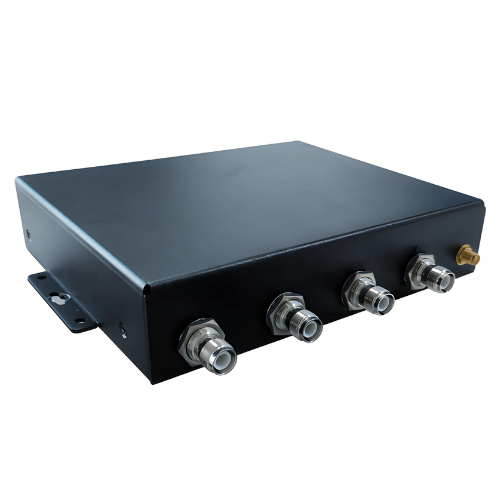

Amuse Tech Solutions Warehouse inventory management high quality wifi wireless long range 4 port fixed uhf rfid reader adopts a high-quality sheet metal shell, provides 4 TNC antenna interfaces, supports 4 independent antennas, and provides industry-specific communication and power interfaces. It has a compact appearance and easy installation. The IP65 protection level of the RFID reader is suitable for use in various industrial and commercial environments and meets the harsh working environment of high and low temperatures. It is widely used in various industrial and commercial environments such as medical treatment, hotel washing, smart warehousing, and new retail.
Technical Specifications
| Operating System | Linux |
| Network | TCP/IP |
| RF Connectors | 4 x TNC port |
| RF Power Output | +5 dBm to +31.5 dbm |
| Max Tag Read Rate | 750 tag per s |
| Power | DC 12 V 3 A |
| RFID Protocol Support | EPC Gen2/ISO180-6C、ISO18000-6B/IPX256/EPC Gen2V2/AEI ATA |
| Frequency | • FCC (NA, SA) 902 MHz to 928 MHz • ETSI (EU, India) 865.6 MHz to 867.6 MHz • TRAI (India) 865 MHz to 867 MHz • KCC (Korea) 917 MHz to 920.8 MHz • ACMA(Australia) 920 MHz to 926 MHz • SRRC-MII (P.R.China) 920 MHz to 925 MHz • MIC (Japan) 916.8 MHz to 923.4 MHz • ‘Open’ (Customizable channel plan; 865 MHz to 868 MHz and 902 MHz to 928 MHz) |
| API Support | C, C# (.NET), Java |
| Standard Accessories | AC Adaptor/RS232 Cable/GPIO connector |
| Dust And Water Immunity | IP54 |
| Humidity | 5 % to 95 %, non-condensing |
| Operating Temp | -4 ℉ to 140 ℉ (-20 ℃ to +60 ℃) |
| Storage Temp | -40 ℉ to 176 ℉ (-40 ℃ to +80 ℃) |
| Dimensions | 7.68 in x 5.55 in x 1.42 in (195 mm x 141 mm x 36 mm) |
| Weight | 25.04 oz (710 g) |
