Description
Overview

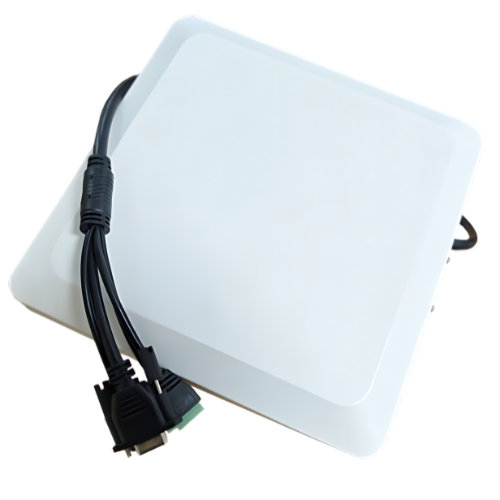

Amuse Tech Solutions Vehicle Identification Uhf RFID Medium Range RFID Reader has an 8 dBi circular antenna built inside and provides a reading distance of up to 32.81 ft (10 m). With IP 66 rating, it could be applied to kinds of severe environment and keep high performance and 24 hrs. x 365 days up-time. This range of RFID integrated readers offers multiple interfaces including RS-232, Ethernet, RF antenna port.
Features
- 6dBi polarization antenna for 32.81 ft (8 m) reading
- 400 tags per s reading speed. Interfaces: RJ45, GPIO, RS232
- Standard power: 12 V DC, optional POE
- Hardware watchdog, interface protection for industrial use
Technical Specifications
| Frequency Range | 840 MHz to 960 MHz or Standard 902 MHz to 928 MHz, customized optional |
| Air Protocol | EPC C1G2 or ISO18000-6C |
| Default Operating Frequency | Frequency interval 250 KHz |
| Channel Bandwidth | 250 KHz |
| Frequency Hopping Speed | ≤ 2 s |
| Operating Voltage | 12 V to 48 V (802.3 af POE) |
| Max. Power Consumption | 10 W |
| Standby Current | ≤ 100 mA |
| Maximum Power Output | 30 dBm (EIRP 4W) |
| Step Interval | 1 dh or 5 dBm to 30 dBm (adjustable by software) |
| Radio-Frequency Power Rising Time | ≤ 500 us |
| Radio-Frequency Power Dropping Time | ≤ 500 ua |
| Adjacent Channel Power Leaking Ratio |
≤ -40 dB or ≤ -60 dB |
| Multi-Label | > 400 per s |
| Maximum Reading Range |
0 ft to 32.81 ft (0 m to 10 m) |
| Operating Temperature | -13 °F to 104 °F (-25 °C to + 40 °C) |
| Storage Temperature | -40 °F to 140 °F (-40 °C to +60 °C) |
| Size | 5.04 in x 5.04 in x 1.97 in (128 mm x 128 mm x 50 mm) |
| Weight | 11.02 lb (5 kg) |
