Description
Features
- Automatic scan Com Port or Network
- Support firmware upgrade
- Support Export Config or Import Config
- Multiple country languages
- Global frequency (860 MHz to 960 MHz)
- Password mode
- Read specify tag
- Relay
- Data cache
- Multiple customized communication protocols
- Remote listening
- RSSI
Technical Specifications
| Frequency | 865 MHz to 868 MHz (EU) or 902 MHz to 928MHz (US) |
| Protocol | ISO18000-6B/6C (EPC GEN2) |
| Engine | Designed by senior imported chip solution(compatible with Impinj R2000) |

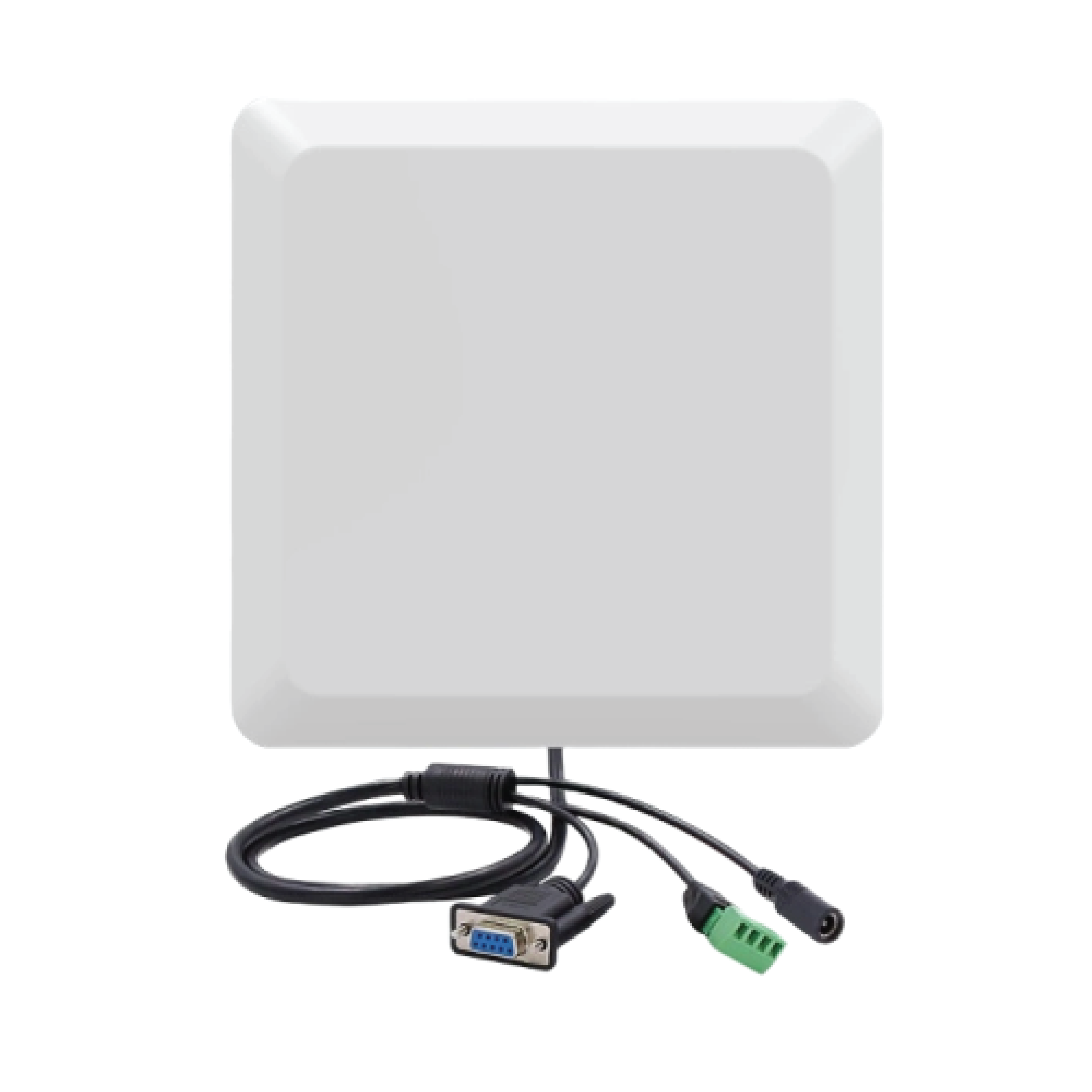

| Built In Antenna | 9 dBi antenna |
| Reading Distance | 32.8 ft to 49.2 ft (10 m to 15 m) |
| Work Mode | Active mode Answer mode Password mode Trigger mode |
| Special Functions | Support firmware/hardware upgrade online Support multiple development languages(customized) Support relay +password trigger relay work Support data caching when network disconnect Support RSSI |
| Power Supply | 12 V 2 A (Max 24 V) |
| Communication Interface | Standard: RS232. WG26. Relay Optional: TCP/IP(RJ45), POE, WIFI |
| Working Temperature | 14 °F to 131 °F (-10 °C to 55 ºC) |
| Storage Temperature | -4 °F to 167 °F (-20 °F to 75 ºC) |
| Reader Size | 12 in x 12 in x 2.36 in (305 mm x 305 mm x 60 mm) |
| Net Weight | 6.61 lb (3 kg) |
