Description
Overview

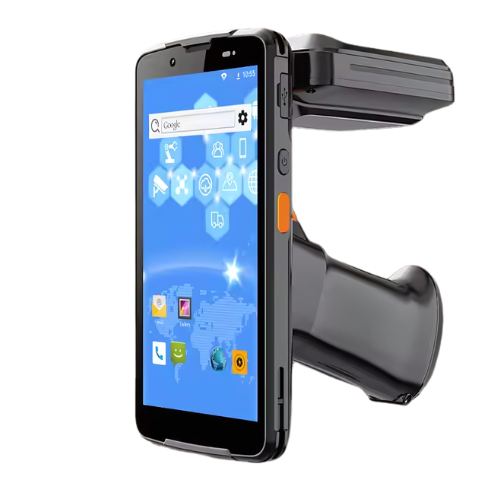

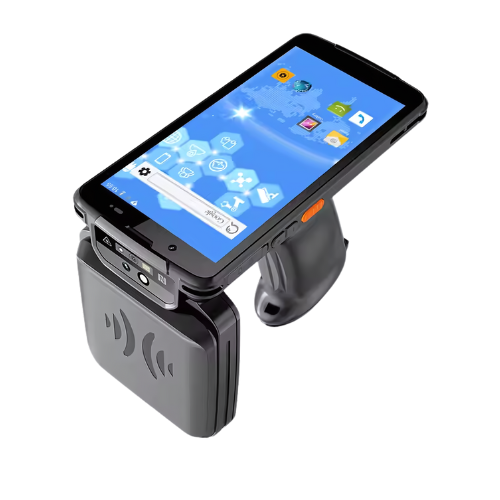

Amuse Tech Solutions Android Handheld RFID Reader with Long Range Fingerprint is an upgraded all-in-one high-performance UHF RFID Reader. It has Integrated a self-developed based UHF module which offers industry-leading UHF performance. It adopts an integrated design, provides more stable UHF performance, and delivers higher durability. The superior system configuration of the mobile computer features the Android 11 platform, octa-core processor, optional mass internal memory and a large capacity removable battery. It also supports 2D scanning, NFC, fingerprint recognition and other functions, which enables it to be widely used in scenarios like banking, public security, warehousing, retail, logistics and other industries.
Features
- Octa-core 2.0 Ghz
- 1D and 2D Barcodes
- Option for 4G
- OS Android 11
- 13 MP Rear autofocus camera
- 5 MP Front Pixel
Technical Specifications
| Frequency (UHF) | 865 MHz to 868 MHz or 902 MHz to 928 MHz or 920 MHz to 925 MHz |
| Protocol (UHF) | EPC global Gen 2 (ISO18000-6C) |
| Output Power (UHF) | 1 W (30 dBm, + 5 dBm to + 30 dBm adjustable) 2 W Optional (33 dBm, for Latin America, etc.) |
| Antenna (UHF) | Circular polarization; 5 dBi or 4 dBi (NFC supported) |
| Power (UHF) | 5 dBm to 30 dBm adjustable, 1 dBm step |
| Standby Loss (UHF) | About 0.25 W, maximum 7.5 W |
| Read Range (UHF) | Indoor > 59.0 ft (18 m), outdoor > 29.5 ft (9 m) |
| Read Rate (UHF) | 200 tags per second |
| Engine (UHF) | CM710-1 module based on E710 CM2000-1 module based on Indy R2000 |
| Frequency (NFC) | 13.56 MHz |
| Protocol (NFC) | ISO14443 A or B, ISO15693, NFC-IP1, NFC-IP2 etc |
| Chips (NFC) | M1 card (S50, S70), CPU card, NFC tags etc. |
| Range (NFC) | 0.7 in to 1.5 in (20 mm to 40 mm) |
| Option | 4G or WIFI or BT or Camera or GPS or Barcode |
| Operating Distance | up to 32.8 ft (10 m), depends on the tag size |
| Operating System | Android 11 |
| Fastest Read Rate | 900 + tags per second (circular polarized) |
| NFC | Available |
| CPU | Octa-core, 2.3 GHz |
| Storage | 3 GB + 32 GB or 4 GB + 64 GB |
| Touch Screen | 5.5 in (13.9 cm) IPS HD touch screen |
| IP Class | IP65 |
| Interfaces | 2 Nano SIM card slots or 1 Micro SD card slot + 1 Nano SIM card slot SD card slot up to 256 G USB TYPE-C interface, support OTG Fast, charging 5 V or 9 V, 1.6 A Bottom Charging pins |
| Barcode Scanning | NLS-CM60EAN13, EAN8, UPCA, Code128, Code39Codebar, UCC or EAN128, RSS, ITFTF114, TF6, ISSN, ISBN, Standard 25, Matrix 25, Industrial25, Plessey, MSI Plessey, Code11, Code93, PDF417, data Matrix, QR Code, Aztec, HanxinCode, MaxiCode, MicroPDF417, Composite |
| Resolution | 2.7 in x 56.6 in (70 mm x 1440 mm) |
| RAM + ROM | 3 GB + 32 GB or 4 GB +64 GB (Optional) or 6 GB + 128 GB (Optional) |
| Expansion | Supports up to 128 GB Micro SD card |
| Display | 5-in (12.7 cm) (Fingerprint), 50.3 in X 28.3 in (1280 mm x 720 mm) or 6-in (15.2 cm), 85.0 in X 42.5 in (2160 mm x 1080 mm) |
| Touch Panel | Multi-touch panel, gloves and wet hands supported |
| Battery | 6700 mAh or 134000 mAh removable pistol battery Built in 100 mAh backup battery, supporting battery hot swap |
| Card Slot | 2 slots for PSAM card; 1 slot for Nano SIM card, 1 slot for Nano SIM or TF card |
| Interfaces | USB 2.0 Type-C, OTG, Type-C headphones supported |
| Expansion Slot | 1 Slot for SIM card, 1 slot for SIM or TF card |
| Audio | 2 microphones, 1 for noise cancellation; 1 speaker; 1 receiver |
| Notification | Sound, LED indicator, vibrator |
| Keypad | 1 power key, 2 scan keys, 1 user-defined key, 2 volume keys (+ or -) |
| Sensors | Gravity sensor, proximity sensor, light sensor, geomagnetic sensor (optional), gyroscope (optional) |
| SDK | Software development kit |
| Language | Java |
| Tool | Eclipse or Android Studio |
| WLAN | 802.11 a or b or g or n or ac, 2.4G or 5G dual band |
| WWAN | 2G: GSM (B2 or B3 or B5 or B8) 3G: WCDMA (B1 or B2 or B4 or B5 or B8) CDMA2000 ECDO: BC0 4G: B1 or B2 or B3 or B4 or B5 or B7 or B8 or B12 or B17 or B20 or B28A or B28B or B38 or B39 or B40 or B41 |
| Bluetooth | 5.0 |
| Vo-LTE | Support |
| GNSS | GPS or AGPS, GLONASS, BeiDou, Galileo |
| Front Camera | 5 MP |
| Rear Camera | Rear 13 MP Autofocus with flash |
| Fingerprint | TLK1NC02 |
| 2D Scanner (Barcode Scanning) | CM60; Zebra: SE4710 |
| 1D Symbologies (Barcode Scanning) | UPC or EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS etc. |
| 2D Symbologies (Barcode Scanning) | PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX) etc. |
| Accessories | USB Cable, Adapter, Charging Cradle for device, Charging Cradle for Pistol Battery |
| Drop Specification | Multiple (1.5m) 5.9ft. drops (at least 28 times) to the concrete across the operating temperature range |
| Tumble Specification | 1000 x (0.5 m) 1.64 ft. falls at room temperature |
| Sealing | IP65 per IEC sealing specifications |
| ESD | ± 15 KV air discharge, ± 8 KV conductive discharge |
| Humidity | 5 % RH to 95 % RH (non-condensing) |
| Operating Temperature | 4 °F to 122 °F (-20 °C to 50 °C) |
| Storage Temperature | 4 °F to 158 °F (-40 °C to 70 °C) |
| Dimensions | 6.9 in X 3.1 in X 0.5 in (177.0 mm X 80.2 mm X 14.8 mm) |
| Weight | 21.0 oz (598 g) |
