Description
Overview

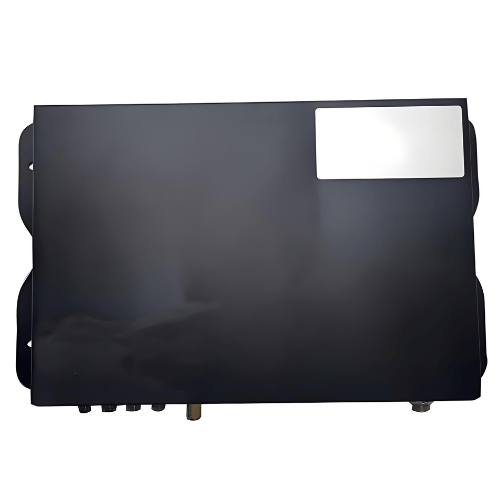

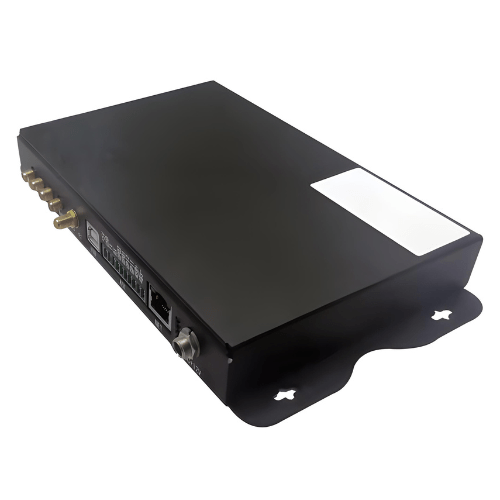

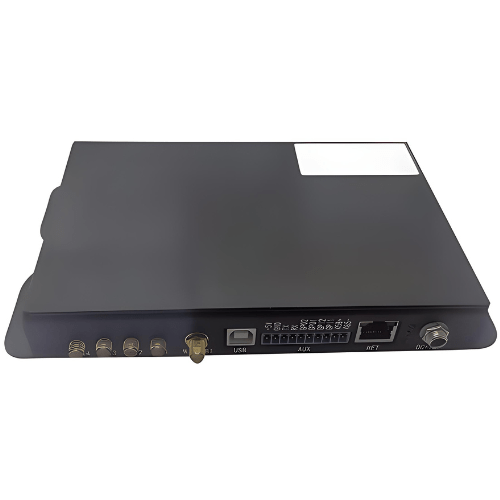

Amuse Tech Solutions Multi Tag Short Range Passive Fixed UHF RFID Reader is a high-performance UHF RFID fixed reader. It is designed with low power dissipation and high integrated RFID chip solution, which has features of long reading distance, high identification speed, multiple interfaces, and ease of installation. It can be widely used in logistics tracking, commodity inventory, cargo sorting, vehicle management, personnel management, asset management, medical systems, cold chain management, temperature monitoring, power monitoring, anti-counterfeiting systems production process control, and many other applications.
Features
- Low power, high integration RFID module
- EU 840 MHz to 868 MHz, US 902 MHz to 928 MHz frequencies
- Supports EPC Global UHF Class 1 Gen2, ISO18000-6C
- Optimized for fast tag inventory: > 100 tags per s
- FHSS or fixed frequency
- Adjustable RF output: up to 33 dBm
- Supports command, polling, trigger modes
- EPC, TID, USER inventory options
- IAP firmware upgradeable
- Single +12V DC power supply

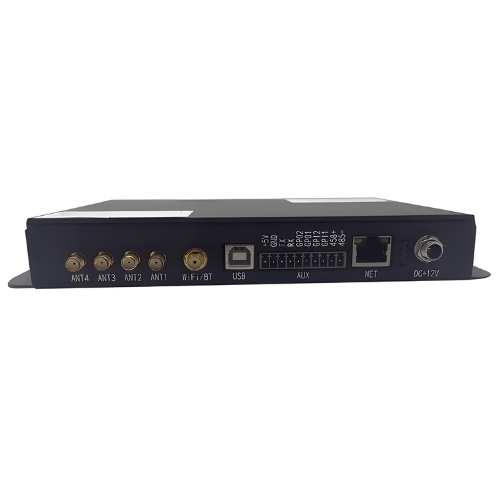

- Interfaces: USB, RS232, RS485, Wiegand, RJ45, WiFi, Bluetooth, PoE
- 4 SMA antenna ports
- Tag cache: up to 800 (96-bit EPC)
- DEMO and SDK provided
- Development support: Windows, Android, Linux; C, C#, JAVA, Python
Technical Specifications
| Frequency | EU 840 MHz to 868 MHz or US 902 MHz to 928 MHz or customized or Fixed or FHSS |
| Protocol | EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C |
| RSSI Testing | Support |
| RF Power | 33 dBm ± 1 dB (Max) |
| Step Power | 1 dBm |
| Signal Width | < 250 KHz |
| Antenna Port | 4 SMA |
| Reading Speed | 200 tags per sec |
| Interface | Support USB, RS232, RS485, Weigand, RJ 45 (TCP or IP, UDP), WIFI, Blue tooth |
| Baud Rate | 4 GPIO (+5 V TTL level), including 2 GPI and 2 GPO 115200 bps |
| Operating Voltage | +12.0 V (+9 V to +24 V) |
| Operating Current | < 600 mA per DC 12 V |
| Standby Current | < 100 mA per DC 12 V |
| Effective Distance | 12 dBi linear polarized antenna, 30 dBm, standard E 41 testing card. Read: 0 ft to 114.83 ft (0 m to 35 m) Write: 0 ft to 3.28 ft (0 m to 1 m) |
| Operating Temperature | -4 °F to 131 °F (-20 °C to +55 °C) |
| Storage Temperature | -22 °F to 185 °F (-30 °C to +85 °C) |
| Operating Humidity | < 95 % RH 77 °F (+25 °C) Non-condensing |
