Description
Overview

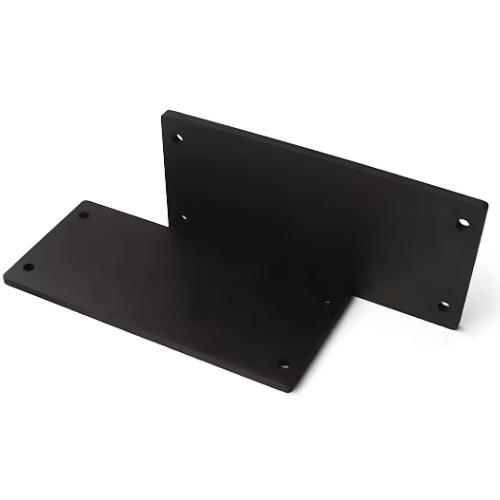

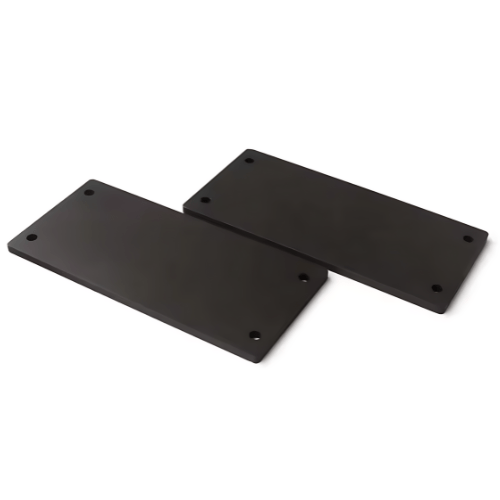

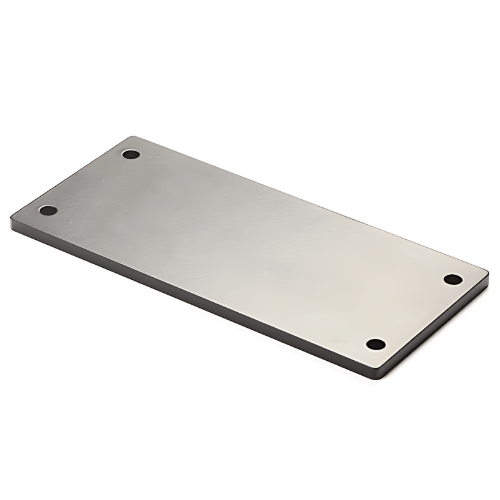

A RFID tag with EPC Class1 Gen2 protocol. Suitable for metal surfaces, offering read ranges up to 68.8 ft (21 m) ATEX, Reach, RoHS certified.
Technical Specifications
| Frequency | 865 MHz to 868 MHz or 902 MHz to 928 MHz |
| Protocol | EPC Class1 Gen2, ISO18000-6C |
| Material | PCB |
| Certifications | ATEX, Reach, RoHS, CE |
| Color | Black (Red, Blue, Green, White) |
| Mounting Methods | Embed, Adhesive |
| Memory | EPC 128 bits, User 0 bits, TID 96 bits |
| Write cycles | 100000 times |
| Functionality | Read or Write |
| Data Retention | Up to 50 Years |
| Applicable surface | Metal Surface |
| Data Retention | 10 Years |
| Read Range (Fixed Reader) | 68.8 ft (21 m) |
| Read Range | 29.5 ft (9.0 m) |
| Operation Temperature | – 40 °F to 212 °F (- 40 oC to 100 oC) |
| Storage Temperature | – 40 °F to 212 °F (- 40 oC to 100 oC) |

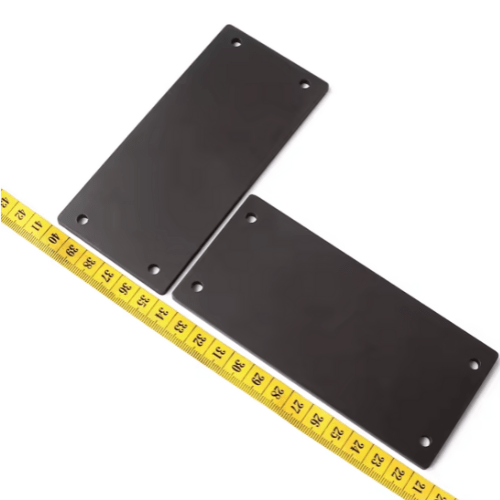

| Size | 5.1 in x 0.3 in x 2.1 in (130 mm x 60 mm x 3.9 mm) |
| Weight | 2.1 oz (61.0 g) |
