Description
Overview

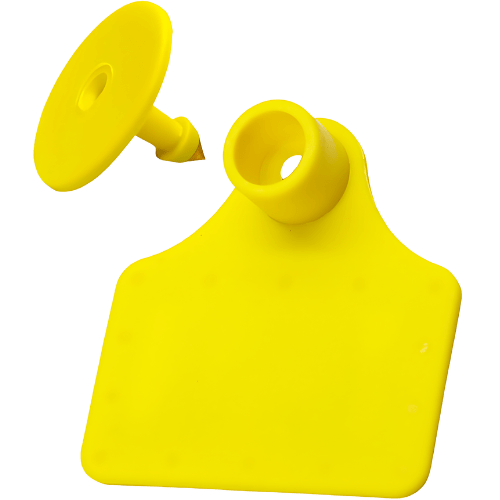

Amuse Tech Solutions UHF RFID Cow ear label Sheep Pig Recognition is worn on the pig’s ears. We use the code reader to scan the encoding of the electronic earmark near the electronic Earmel. The reader will emit the inductive magnetic field, and the electronic earmark can communicate with the magnetic field induction and communicate the number information stored by itself with the reader. The reader matches the Bluetooth connection with the pork field management software or APP to achieve data interconnection.
Features
- Essential for breeding, prevention, and meat quarantine
- Ideal for marking pigs for identification, breeding, and vaccination
- Prevents theft and tracks livestock like sheep, cattle, and foxes
- Bright color for easy identification, even in -22 °F (-30 °C) conditions
- Made of modified TPU material with high toughness
- Features a copper nail head for easy application
Technical Specifications
| Frequency | (US Standard) 902 MHz to 928 MHz |
| Air Interface Protocol | EPC Global Class1 Gen2 ISO18000-6C |
| Chip | Impinj M730 (Can Be Customized) |
| Inlay Substrate | PET |
| Shell Material | TPU |
| Shell Color | Yellow (Can Be Customized) |
| Thickness | 0.07 in (2 mm) |
| IC Type | Impinj M730 |
| Memory | EPC 128 bits; TID 96 bits; User Memory: No |
| lC Life | 100,000 Times |
| Data Retention | 10 Years |
| Application Surface | Non-Metal Surface |
| Reading Range | More than 14.7 ft (4.5 m) (US Standard, Handheld 1 W) |
| Sealing Level | IP67 |
| Operating Temperature | -4 °F to 176 °F (-20 °C to 80 °C) |
| Storage Temperature | -22 °F to 212 °F (-30 °C to 100 °C) |
| Antenna Dimensions | 1.7 in x 1.1 in x 0.07 in (45 mm x 28 mm x 2 mm) |
| Weight | About 0.1 oz (4.8 g) per Piece |
