Description
Overview

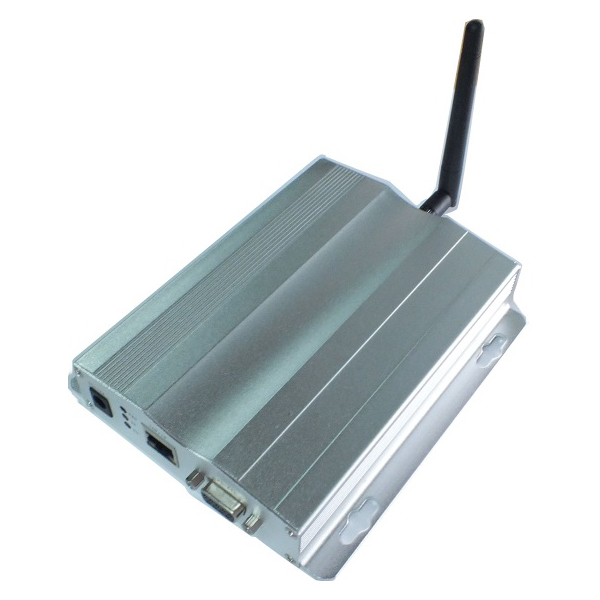

The 2.45 GHz Gain Adjustable RFID Reader uses a built in omni-directional antenna allowing it to identify transponder tagged items up to 100 meters in all directions. Users can adjust the identification distance from less than 5 meters to 100 meters according to actual situations in order to make identification more accurate. The reader uses an advanced 0.18 µm CMOS IC for ultra-low power consumption. The reader features built in PoE (Power over Ethernet) which is the ability for the LAN switching infrastructure to provide power over a copper Ethernet cable to an endpoint or powered device.
Application Usage
Personnel Tracking, Logistics, and Warehouse Management, Closed Loop Asset Tracking, High Value Asset Tracking
Technical Specifications
| Direction | Omni-directional, standard whip antenna |
| Range | 0 to 100 m adjustable |
| Frequency | 2.4 GHz to 2.5 GHz ISM (UHF-Ultra High Frequency) |
| RF Output Power | 0 dBm |
| Sensitivity | -90 dBm |
| Power | 50 mA, 9 V |
| Modulation | GFSK |
| Modes | Direct Mode and Buffering Mode. In direct mode, the reader uploads messages to the host system in real time. In buffering mode, the reader save messages, which are uploaded only when requested by the host system |
| Dimensions | 126 x 104 x 28 mm |
| Data Rate | 1 Mbps |
| Interface | TCP/IP (RS232 is optional) |
| Operating Temperature | -40 °C to 80 °C |
| Operating Humidity | 95% Non-condensing |
| Multi-Detection | 100 tags/sec |
