Description
Overview

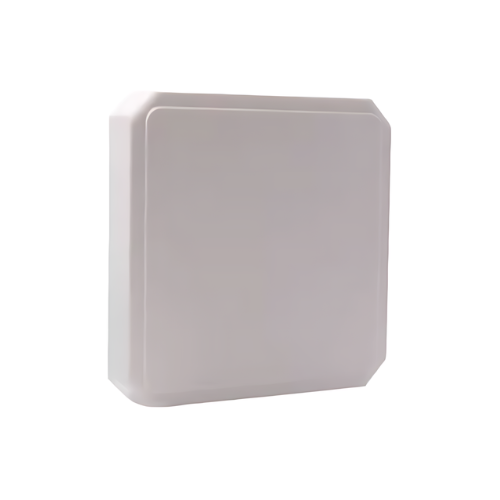

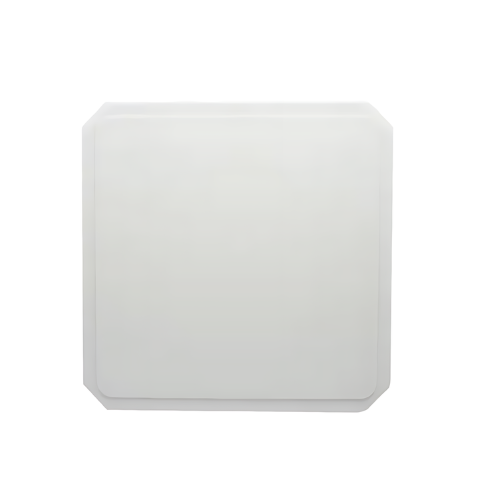

Amuse Tech Solutions Long Distance Range RFID Android Antenna Readeris a high performance 9dBi UHF circular polarization Antenna with IP67 rating, It is widely applied in many RFID application systems such as logistics, terminals, parking lots, shopping malls, toll station, access control, and anti-counterfeit and industrial production process control system.
Technical Specifications
| Frequency | 840 MHz to 940 MHz or customized 865 MHz to 868 MHz (EU) or 902 MHz to 928 MHz (US) |
| Protocol | ISO 18000-6C |
| Gain | 9 dBi |
| Band Width | 26 Mhz |
| Polarization | Circular |
| IP Grade | IP67 |
| Connector | N-Female |
| Material | Aluminum alloy and ABS |
| F Or B Ratio | >23 |
| V.S.W.R | < 1.3 |
| Max. Power | 100W |
| Nominal Impedance | 50Ω |
| Horizontal Beam Width | Hor:70° Vert:63° |
| Lightning Protection | DC Ground |
| Rated Wind Velocity | 1968.5 ft (60 m) per second |
| Reflector Material | Aluminum alloy |
| Randome Material | ABS |
| Suitable Pole Diameter | Φ 40 to Φ75 |
| Operating Temperature | -40°F to 176°F (-40 °C to 80 °C) |
| Dimensions | 10.1 in X 10.1 in X 1.6 in (257 mm X 257 mm X 43 mm) |
| Weight | 21.1 oz (600 g) |
