Description
Overview

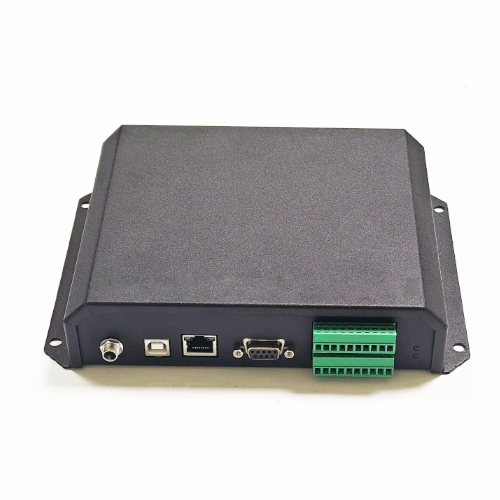

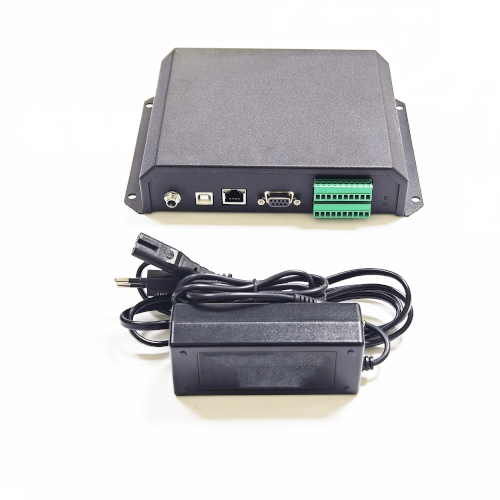

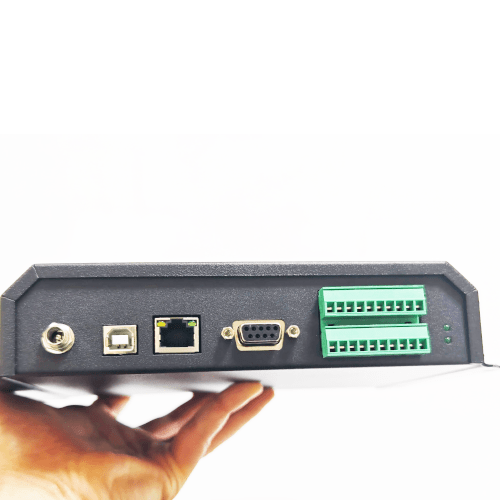

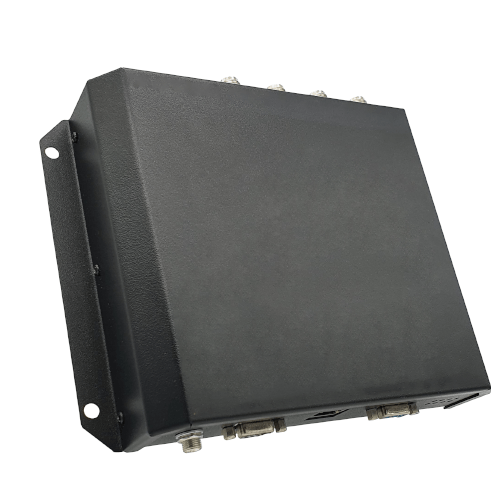

Amuse Tech Solutions 4 ports ISO18000-6C Wireless epc gen2 rfid fixed reader for asset tracking solution delivers the performance, quality, and reliability necessary for maximum visibility of tagged inventory and assets. Able to maintain high read rates regardless of RF noise or interference as the readers adapt automatically for optimal functionality, HYR830 readers are a powerful piece of item visibility platform solutions.
Technical Specifications
| Operating Voltage | 12 V |
| Maximum Current | 800 mA |
| Standby Current | ≤100 mA |
| Frequency Range | 840 MHz to 960 MHz |
| Default Operating Frequency | Frequency Hopping |
| Frequency Interval | 250 KHz |
| Channel Bandwidth | 250 KHz |
| Frequency Hopping Speed | ≤2 s |
| Maximum Power Output | 31 dBm |
| Step Interval | 1 dB |
| Power Output Adjustment | 5 dBm to 30 dBm (adjustable by software) |
| Protocol Support | EPC C1 G2/ISO18000-6C |
| ISO18000-6D Support | Available for customization |
| Maximum Reading Distance | 78.7 ft (24 m) |
| Multi-Tag Read Rate | >400 tags per s |
