Description
Features

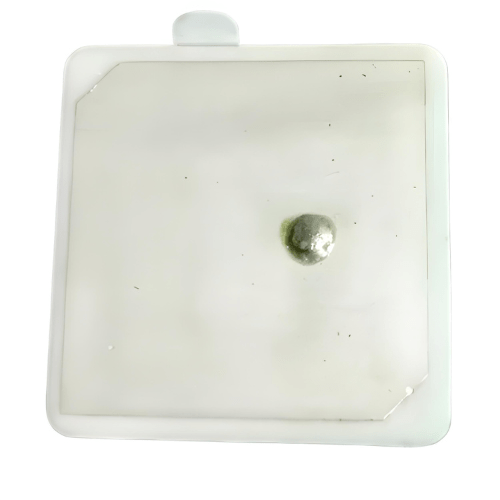

- Ceramic base material
- Copper with tin plated PIN
- Silver Plating radiant surface
- Silver Plating ground plan
Technical Specifications
| Receiving Frequency Range | 905 MHz to 925 MHz |
| Center Frequency | 915 MHz |
| Bandwidth | 20 MHz |
| Gain | 3 DBi |
| Axial Ratio | ≤ 3.0 DB |
| VSWR | 1.5 Max |
| Material | Ceramic |
| Feed Point | Single or Double |
| Polarization | Right Circular Polarization |
| Impedance | 50 Ohm |
| Frequency Temperature Coefficient | 20 Max |
| Working Temperature | – 4 °F to 158 °F (- 20 ℃ to + 70 ℃) |
| Size | 1.38 In x 1.38 in x 0.16 in (35 mm x 35 mm x 4 mm) |
