Description
Overview

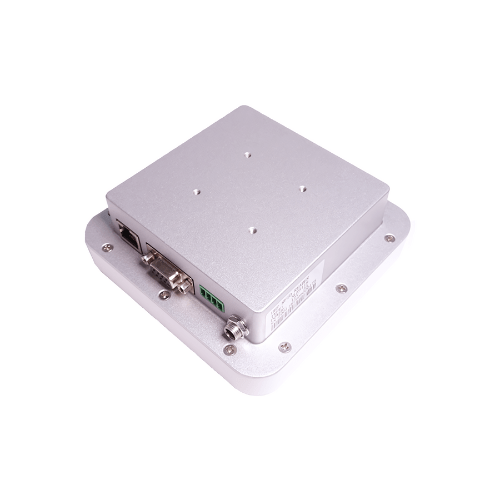

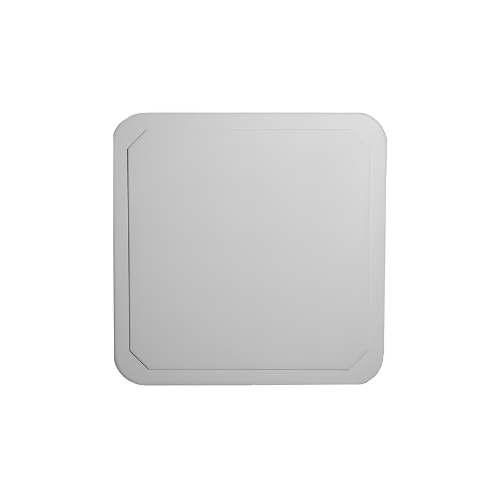

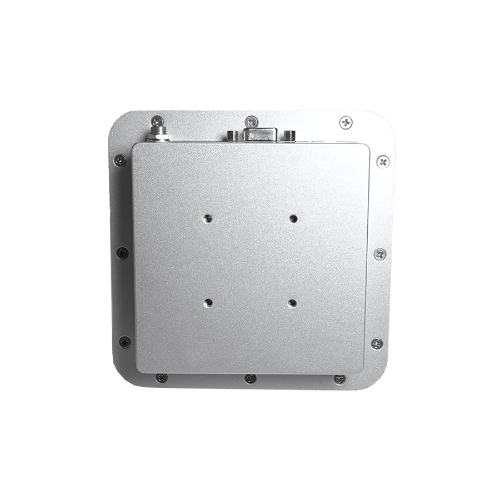

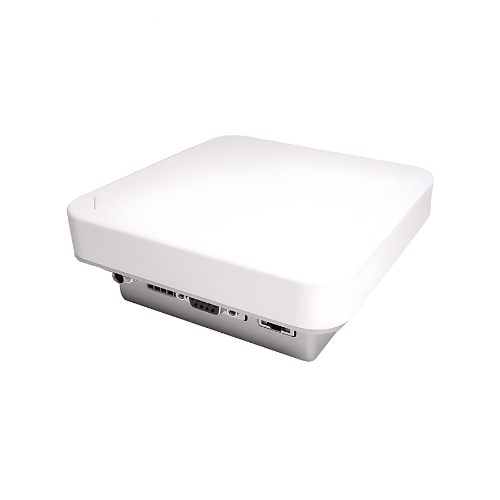

Amuse Tech Solutions high gain linear polarization 902- 928mhz rfid directional antenna for retail long range 9dbi uhf rfid antenna is linear polarized directional antenna. Attention should be paid to adjusting the antenna tilt to obtain the optimal reading performance. This Antenna can be used outdoors, but not suitable for use in acid or alkali environment.
Features
- Frequency Range 698 MHz to 2700 MHz
- Polarization Vertical POL or Customized
- Gain 10 dBi
- Azimuth Beamwidth 65° ± 15°
- Elevation Beamwidth 55°
- VSWR ≤ 1.5
Technical Specifications
| Frequency Range | 902 MHz to 928 MHz |
| VSWR | ≤1.3:1 |
| Protocol | ISO 18000-6C |
| Gain | > 9 dBic |
| H Side HPBW | 70 ° |
| E Side HPBW | 70 ° |
| Polarization | Linear polarized |
| Relative Humidity | 5 % to 95 % |
| Impedance | 50 ± 1 Ω |
| Connector Type | N Female (one input port) |
| Weight | 0.91 kg (bracket excluded) |
| Material | Engineering plastics ASA aluminum |
| Color | Milk white |
| Production Class | IP67 |
| Operating Temperature | – 40 °F to 185 °F (- 40 ℃ to + 85 ℃) |
| Storage Temperature | – 40 °F to 185 °F (- 40 ℃ to + 85 ℃) |
| Size | 10.16 in x 10.16 in x 1.42 in (258 mm × 258 mm × 36 mm) |
| Weight | 0.42 lb (0.91 kg) (bracket excluded) |
