Description
Overview

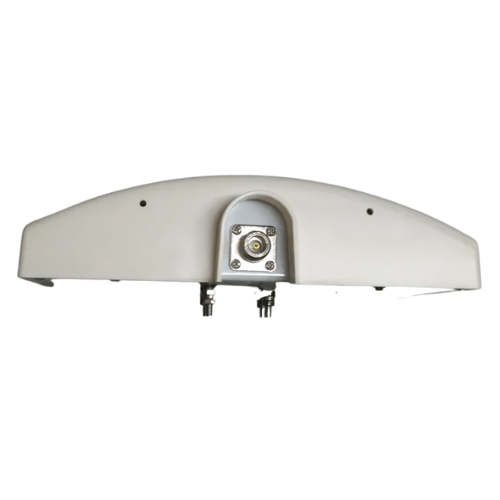

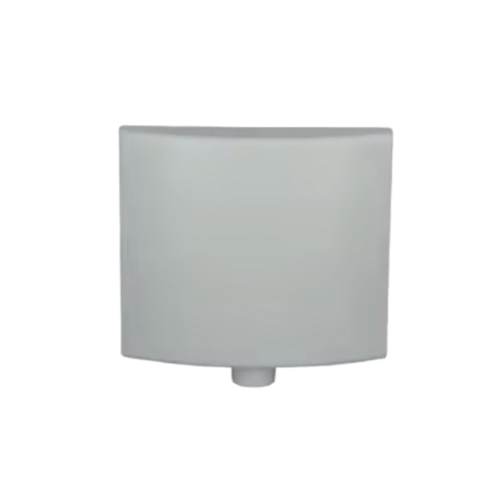

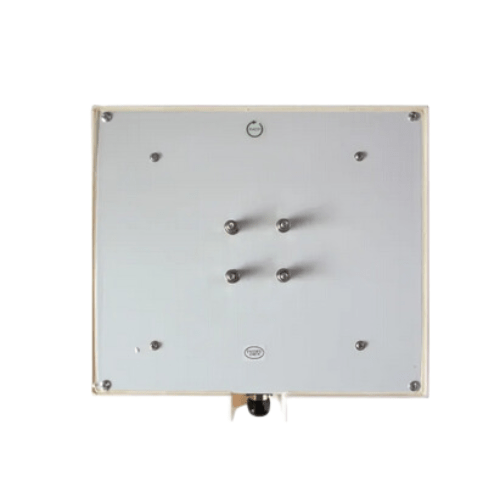

Amuse Tech Solutions 9dbi uhf rfid antenna 865-868mhz/902-928mhz circular polarization is mainly used with UHF reader, which adopts a way of guiding DC to ground to be protected from thunder. With ABS material, it can work well in harsh environments.
Features
- Frequency ranges 865 MHz 868 MHz 902 to 928 MHz (Customized)
- Gain 9 dbi
- F or B ≥ 18
- Polarization Circular
Technical Specifications
| Frequency Ranges | 865 MHz 868 MHz 902 to 928 MHz (Customized) |
| Gain | 9 dbi |
| F or B | ≥ 18 |
| Model Number | WA 909C |
| Polarization | Circular |
| Connector | N (Female) |
| Beam Width Eplane | 70° |
| Beam Width Hplane | 70° |
| VSWR | ≤ 1.3 |
| Impedance | 50 Ω |
| Radome Material | ABS |
| Size | 9.84 in x 8.66 in x 2.36 in (250 mm × 220 mm × 60 mm) |
| Weight | 2.42 lb (1.1 Kg) |
