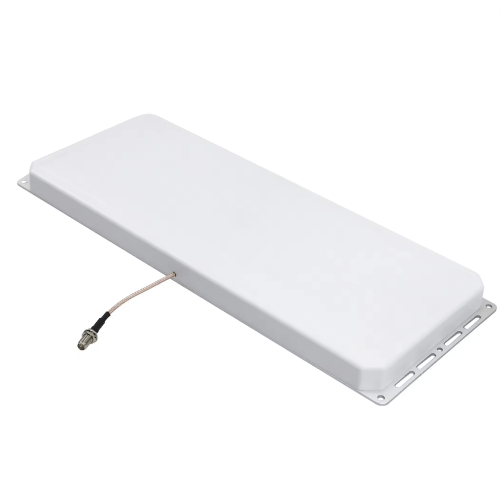

Description
Features
- It is large in size
- It has a back cover on the bottom
- It can be built into an all-in-one machine with built-in modules
- Long reading and writing distance
- It has high stability.
Technical Specifications
| Frequency Range | 902 to 928 |
| Gain | 8 dBi |
| Dimension | 13.22 in x 5.11 in x 0.78 in (336 mm x130 mm x 20 mm) |
| VSWR | ≤ 1.5 |
| Protocol | ISO or IEC 18000 6B 6C or EPC C1Gen2 |
| Beam Width | Hor 45 ± 1 Ver 75 ± 1 |
| Impedance | 50 |
| Polarization | Circular Polarization |
| MAX Power | 50 |
| Connector | Internal Lead RG316 or 3.93 (10 cm) or Connector or Customized |
| Antenna Weight | 17.6 oz (0.59 KG) |
| Reflector Material | FR4 Copper Clad Laminate |
| Radome Material | ABS |
| Radome Color | White |
| Operating Temperature | 104 °F to 131 °F (-40 ℃ to 55 ℃) |
| Single Package Size | 20.47 in x 6.29 in x 3.14 in(52 cm X 16 cm X 8 cm) |
| Single Gross Weight | 3.30 lb (1.500 kg) |
