Description
Features
- Center frequency 902 MHZ to 928 MHz or 1575 MHz or 1608 MHz
- Gain ≥ 2 dBi (Subject to the actual parameters)
- Impedance 50 Ω
- Polarization Model RHCP
- Permittivity 21
Technical Specifications
| Center Frequency | 902 MHZ to 928 MHz |
| Gain | ≥ 2 dBi (Subject to the actual parameters) |
| Impedance | 50 Ω |
| Polarization Model | RHCP |
| Permittivity | 21 |

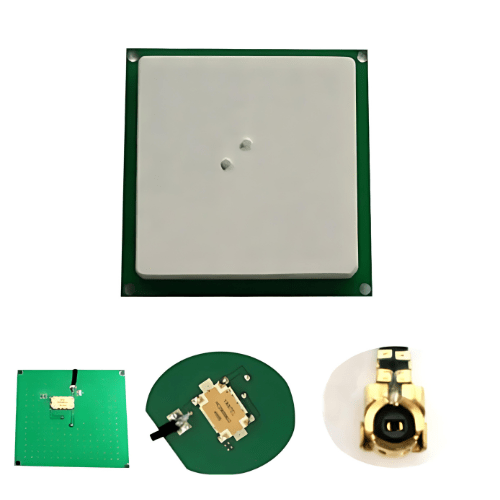

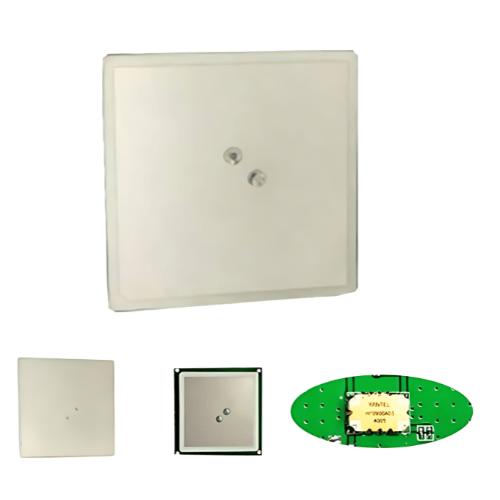

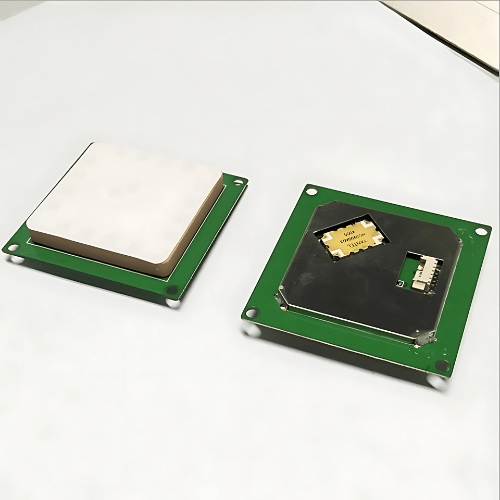

| Type | Ceramic Patch |
| Service | OEM OR ODM |
| Dimensions | 0.39 in x 0.39 in or 0.47 in x 0.47 in or 0.59 in x 0.59 in or 0.71 in x 0.71 in or 0.98 in x 0.98 in (10 mm x 10 mm or 12 mm x 12 mm or 15 mm x 15 mm or 18 mm x 18 mm or 25 mm x 25 mm) |
