Description
Overview

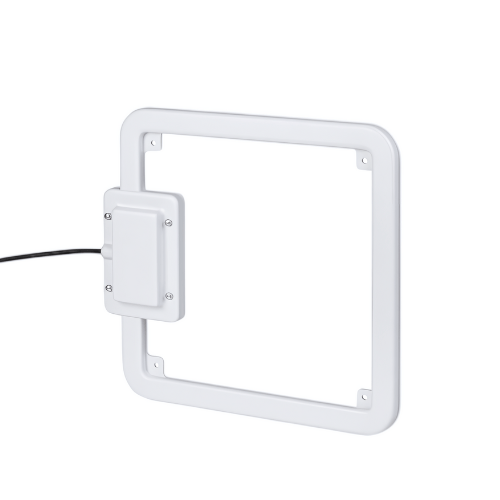

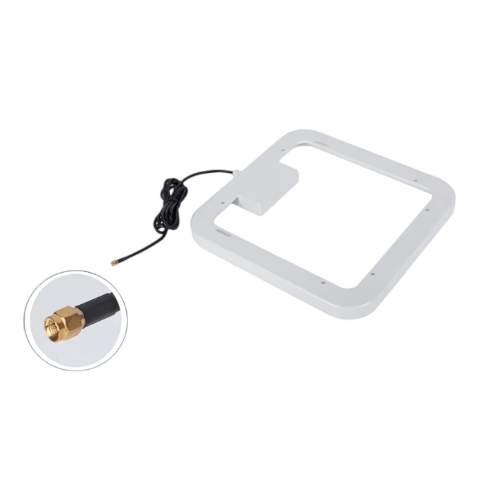

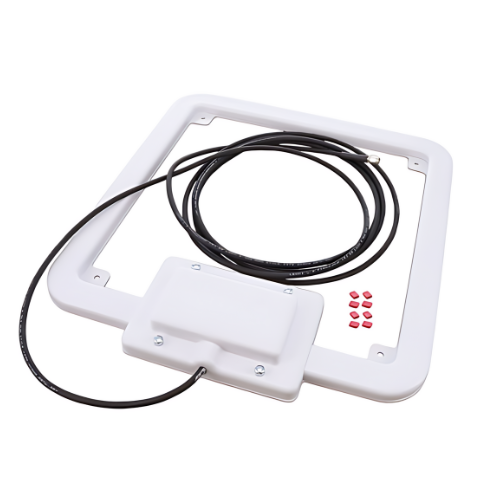

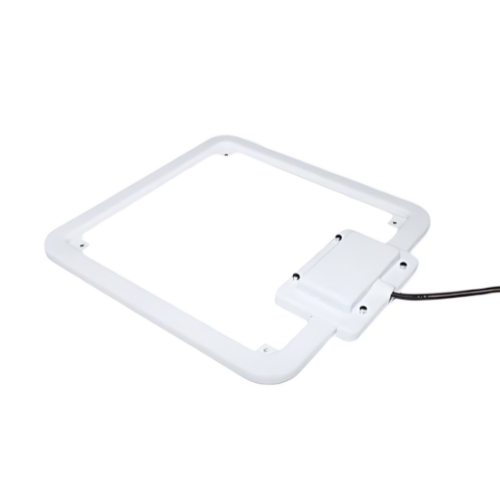

This Amuse Tech Solutions rfid id ant310 310 hf 13.56 mhz loop antenna ip65 library tracking logistics at conveyor belts sorting systems outdoor indoor is already adjusted for most applications ex works. By means of jumpers the antenna can be adjusted to changing surrounding conditions, optimally. Typical applications for the antenna are libraries, document tracking, and logistics at conveyor belts or sorting systems, access control and industrial data acquisition. The antenna can be employed indoors and outdoors.
Features
- Transmission power up to 8 W
- Protection class IP65
- Useful in many ways with several HF readers
Technical Specifications
| Protocol | ISO 15693 |
| Housing | Plastic ASA |
| Color | White |
| Protection Class | IP65 |
| Relative Air Humidity | 5 % up to 95 % (not condensing) |
| Operating Frequency | 13.56 MHz |
| Max. Transmitting Power | 8 W |
| Antenna Connection | 1 x SMA plug (50 Ω) |
| Operation Temperature | – 13 °F to 131 °F (− 25 °C up to + 55 °C) |
| Storage Temperature | – 13 °F to 140 °F (− 25 °C up to + 60 °C) |
| Read Range | 16.9 in to 27.6 in (43 to 70 cm) |
| Dimensions | 12.5 in x 13.3 in x 1.2 in (318 mm x 338 mm x 30 mm) |
| Weight | 24.7 oz (700 g) |
