Description
Overview

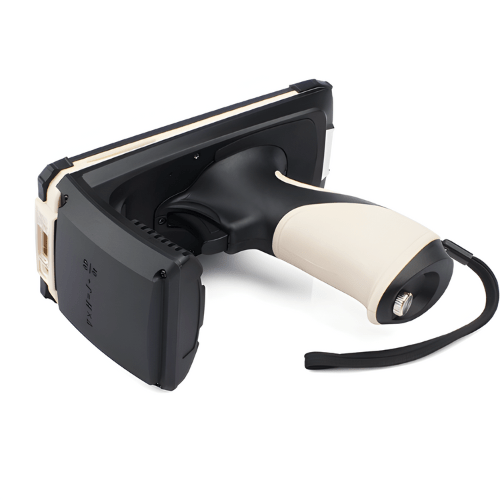

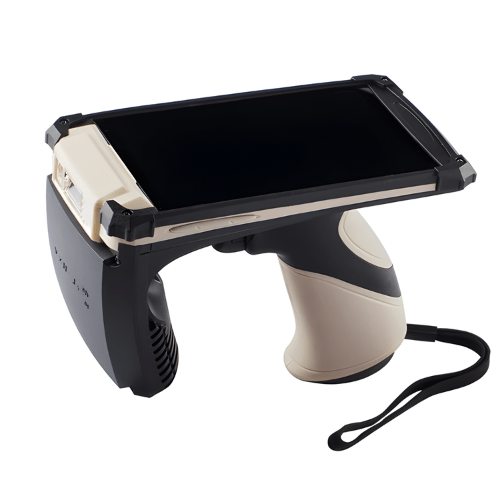

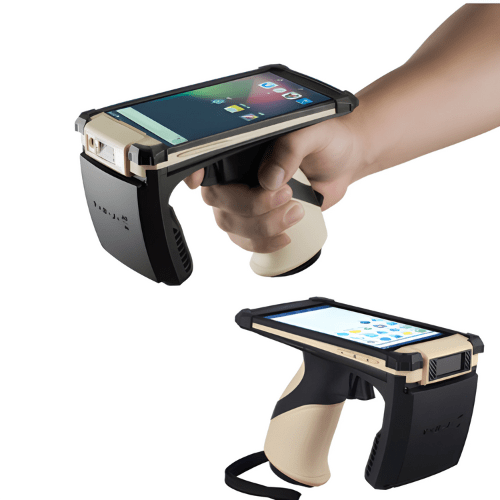

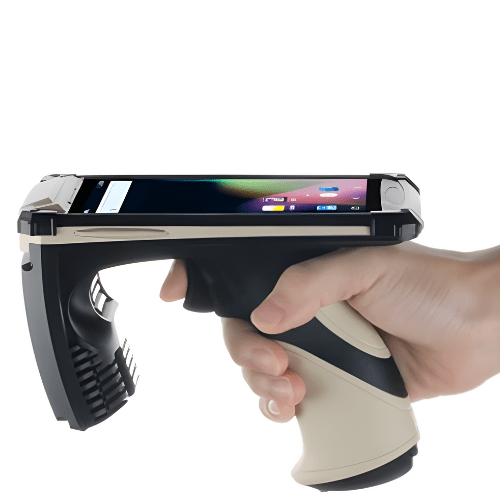

Amuse Tech Solutions Passive Long Range Handheld UHF RFID Reader with GPS Support Android operating system, optional ultra-high frequency RFID function. According to ergonomic design, external antenna, small and exquisite, high degree of protection, simple operation, easy to carry, high flexibility, suitable for working in various environmental conditions. Mainly used in logistics, asset management, warehousing management, library management, production management, ticket management and other fields.
Technical Specifications
| Protocols | ISO18000-6C (EPC GEN2) |
| Operating Frequency | 840 MHz to 960 MHz |
| Operating Mode | Android 6.0 |
| Reading Distance | 16.4 ft to 32.8 ft (5 m to 10 m) |
| CPU | Quad-core Cortex-A17 per 1.8GHz |
| GPU | ARM Mali-T764/High performance 3D engine |
| RAM | 2G LPDDR3 2G LPDDR3 4G LPDDR3 (Optional) |
| ROM | 32G EMMC 5.0 64G EMMC 5.0 |
| Power | 6000 mAh rechargeable li-polymer battery |
| RFID Output Power | 0 dBm to 33 dBm |
| Peak Inventory Speed | >500 tags per s |
| Antenna | 3dBi circularly polarized antenna |
| Wireless Communications | Wifi IEEE 802.1b/g/n, blue tooth 4.0, 3G/4G |
| Optional | Protection Grade IP64 |
| Size | 7.4 in x 3.1 in x 0.9 in (190 mm x 80 mm x 25 mm) |
