Description
Overview

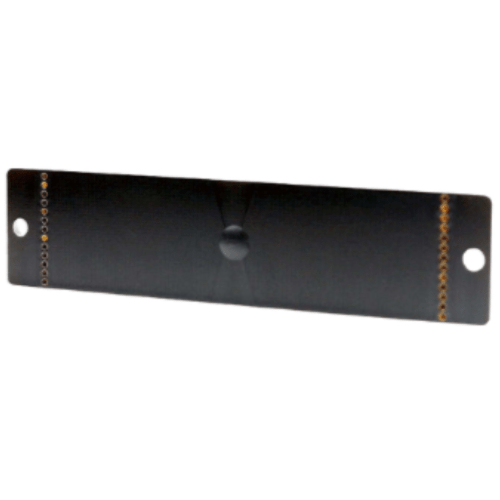

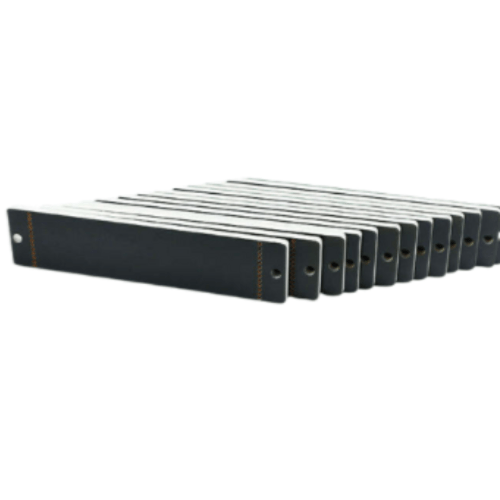

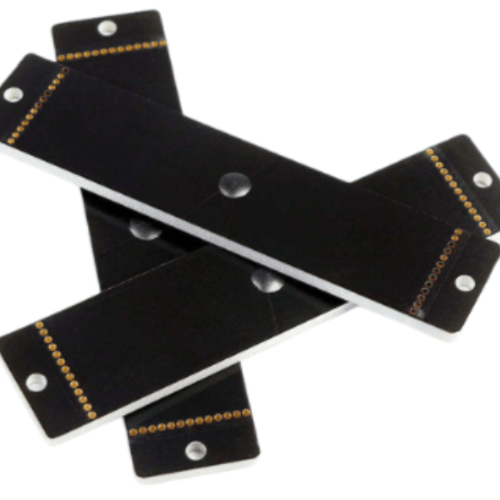

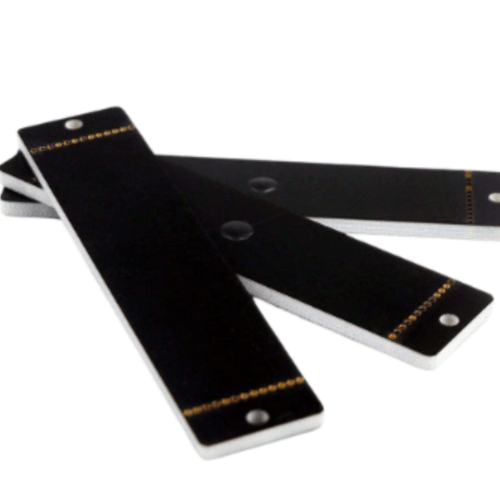

Waterproof RFID tags for asset tracking. Readable up to 26.2 ft, customizable, with write cycle. Ideal for metal surfaces, operates on -40 °F to 212 °F.
Technical Specifications
| Frequency | 902 MHZ to 928 MHz, 865 MHz to 868MHz |
| Protocol | EPC Class1 Gen2, ISO18000-6C |
| Communication Interface | RFID |
| Special Features | Waterproof |
| Chip | H4 or U9 |
| Read Range | 6.5 ft to 26.2 ft (2 m to 8 m) |
| Customized | Available |
| Application | Asset Tracking |
| Memory | EPC 96 bits (Up to 480 bits) , USER 512 bits, TID 64 bits |
| Write Cycle | 100,000 times |
| Functionality | Read or write |
| Material | FR4(PCB) |
| Color | Black (Red, Blue, Green, White) |
| Mounting Methods | Adhesive, Screw |
| Data Retention | Up to 50 years |
| Applicable Surfaces | Metal Surfaces |
| Warranty | 1 year |
| Operating Temperature | -40 °F to 212 °F (-40 ºC to +100 °C) |
| Storage Temperature | -40 °F to 302 °F (-40 °C to+150 °C) |
| Thickness | 0.07 in (2.0 mm) without IC bump, 0.1 in (2.6 mm) with IC bump |
| Size | 3.5 in X 0.7 in (90 mm X 20 mm) |
| Weight | 0.4 oz (12 g) |
