Description
Overview

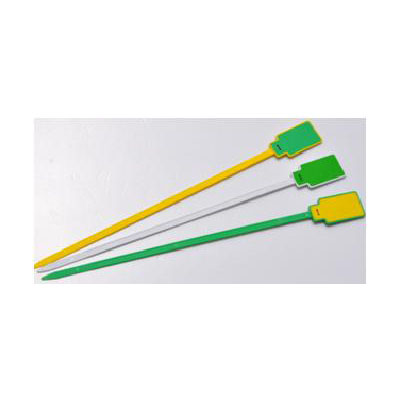

This UHF RFID zip tie tag is specially designed with internal metal wire to make it difficult to remove the tag from any asset. It is often used for logistics and food or animal traceability applications.
Key Features
- Waterproof, anti-corrosion, durable
- Anti-collision algorithm
- Durable lock
- Provides reliable read
Technical Specifications
| Material | PP | |
| Dimension | Label dimension | 53.5mm×30mm×3.1mm |
| Tie rod length | 277.5mm×7.6mm×1.9mm | |
| Total Length | 320mm | |
| Chip | G2XM (Other UHF chips customizable) | |
| Operating Frequency | 915 MHz (ISO/IEC 18000-6C) | |
| Operation Temperature | -30 °C to 85 °C | |
| Read range | 3-4m, handheld reader read range of 0.22 to 0.24m; read range dependent on reader | |
| Pull | 430 to 460 N | |
| Lock force | 210 to 215 N | |
