Description
Overview

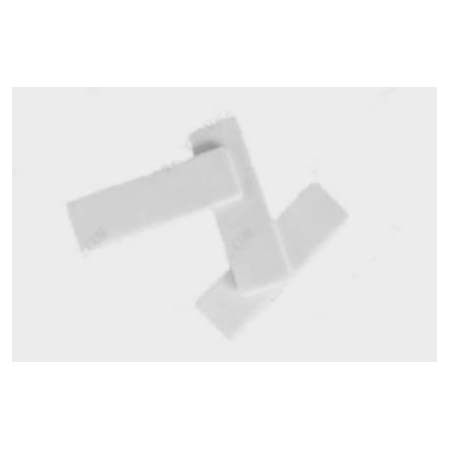

This UHF Gen2 RFID Laundry Tag is developed specifically for laundry applications and operates over a frequency range of 860 to 960 MHz for universal use. This RFID tag meets all endurance requirements in terms of heat, pressure and chemical resistance required for the contactless tracking of garments in the textile and laundry industries. It offers a memory capacity of 96 bits and a long read range of 2 to 5 m.
Key Features
- Compact size and light weight
- Performs well even in harsh environments
- Compliant with ISOl8000 – 6C standard
- Waterproof and high temperature resistant
Applications
- Laundry Industry
- Ticketing
- Asset Tracking
- Vehicle Industry
Technical Specifications
| Type | Contactless Read/Write |
| Operating Frequency | 860 MHz to 960 MHz |
| Capacity | 96 bits |
| Protocol | ISO18000-6C |
| Read Range | 2 m to 5 m |
| Data Retention | More than 100000 times |
| Dimension | 110 mm x 13 mm |
| Storage Temperature | -25 °C to 100 °C for 1000 hours |
