Description
Overview

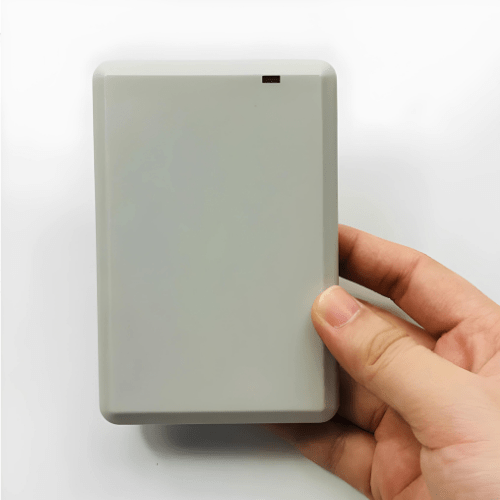

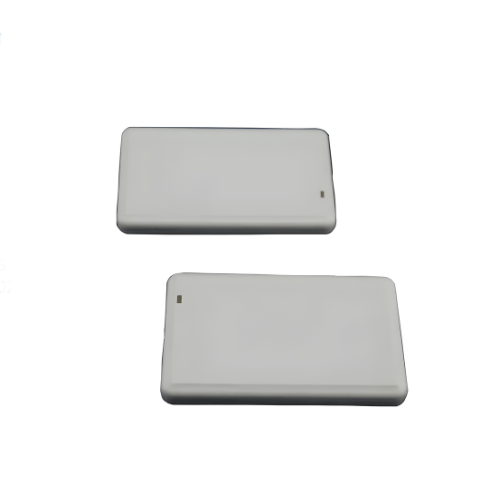

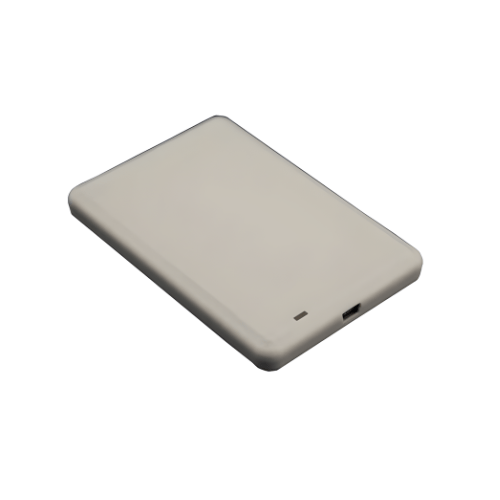

Amuse Tech Solutions Short Read Range Mini Portable USB UHF RFID Reader is a high-performance Multiple Protocol UHF RFID Reader. It is designed upon fully self-intellectual property. Based on a proprietary efficient digital signal processing algorithm, it supports fast tag read or write operations with a high identification rate. It can be widely applied in many RFID application systems, such as logistics, access control, attendance systems, anti-counterfeit and industrial production process control systems.
Features
- Self-intellectual property
- Support ISO18000-6B, ISO18000-6C (EPC C1G2) protocol tag
- 860 MHz to 960 MHz frequency band
- FHSS or Fix Frequency transmission
- RF output power up to 13 dBm(adjustable)
- No external power source is needed
- Built-in antenna with an effect distance of up to 7.87 in (200 mm)
- Support USB 1.1 interface with VSP (Virtual Serial Port) or HID mode
- Slim outline
- Provide SDK and demo software to facilitate further development
Technical Specifications
| Frequency | 860 MHz to 960 MHz |
| Protocol | ISO18000-6C (EPC GEN2) |
| Working Mode | FHSS Or Fixed Frequency Transmission |
| Power Supply | DC 5 V |
| Material | ABS+PC |
| Output Power | 1 dBm to 13 dBm (1 dBm) Adjustable |
| Color | White |
| Reading Distance | 0 in to 3.94 in (0 mm to 100 mm) |

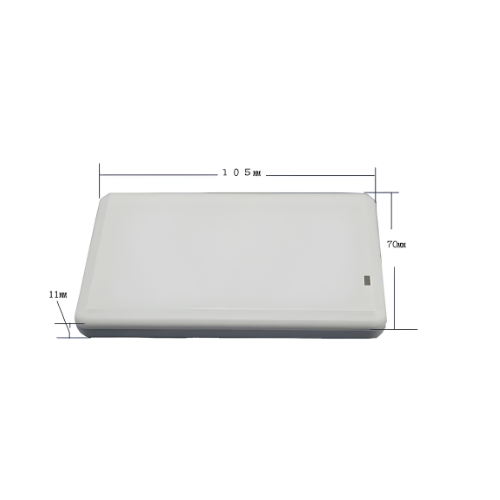

| Dimension | 4.13 in x 2.76 in x 0.43 in (105 mm x 70 mm x 11 mm) |
