Description
Overview

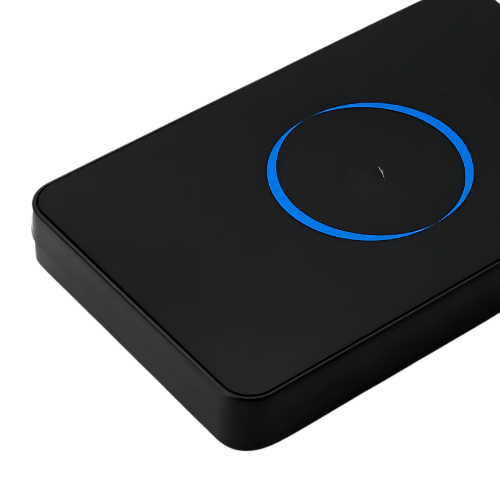

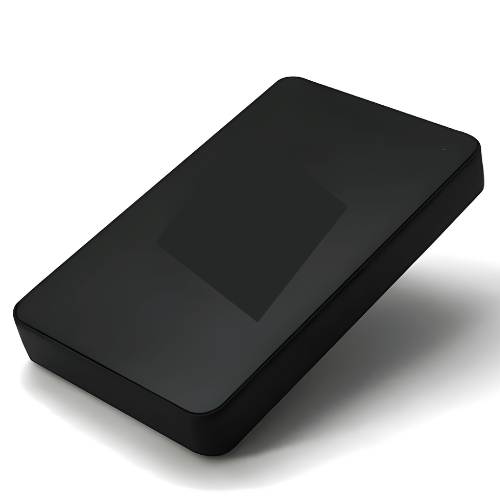

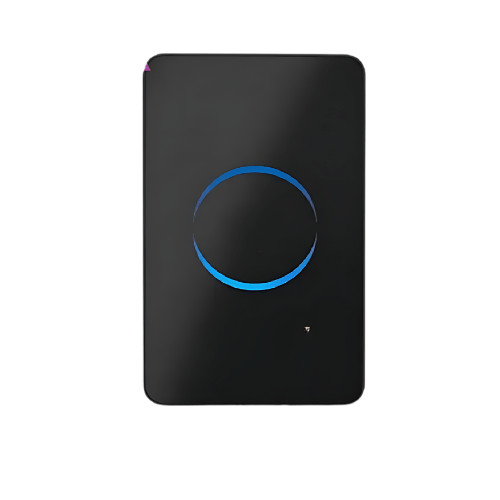

Amuse Tech Solutions USB UHF Reader Writer Access Control is a small desktop reader, compatible with ISO 18000-6C standard. The operating frequency is 902 MHz to 928 MHz. It is a small integrated reader that can be used for short-distance identification or background card issuer management. Easy to carry, suitable for personnel access control, picture file management, and back-end electronic tag reading, writing, authorization, formatting and other operations.
Technical Specifications
| Working Frequency | National Standard 920 MHz to 925 MHz American Standard 902 MHz to 928 MHz |
| Label Agreement | ISO 18000 6-C (EPC GEN2) |
| Frequency Hopping Method | Broad Spectrum Frequency Hopping (FHSS) Or Fixed Frequency That Can be Set By Software |
| Antenna Parameters | 2 dBi Circular Polarization Antenna (Built In) |
| Output Power | 12.5 dBm to 26 dBm (Software Adjustable) |
| Reading Distance | Max Reading Distance Of The Tag: 196.85 in (5000 mm) Max Distance To Write Tags: 78.74 in (2000 mm) |
| Operating Mode | Active Mode Passive Mode Answer Mode (Not Recommended) |
| External Interface Power Interface | DC +5V |
| Communication Interface | USB Virtual Keyboard USB Virtual Serial Port |
| Working Environment Operating Temperature | -4 °F to +131 °F (-20 ºC to +55 ºC) |
| Storage Temperature | -40 °F to +185 °F (-40 ºC to +85 ºC) |
| Physical Parameters Size | 4.09 in x 2.75 in x 0.59 in (104 mm x 70 mm x 15 mm) |
| Weight | 4.23 oz to 7.76 oz (120 g to 220 g) |
