Description
Overview

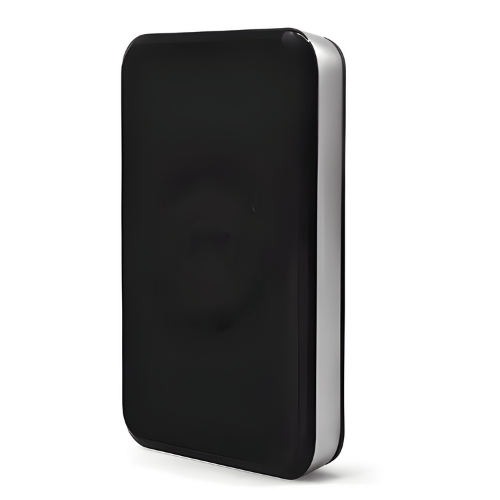

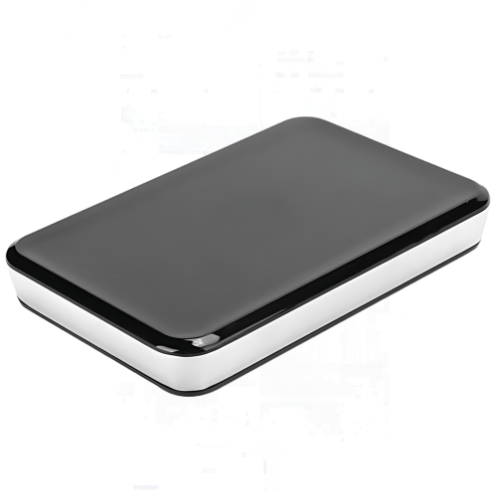

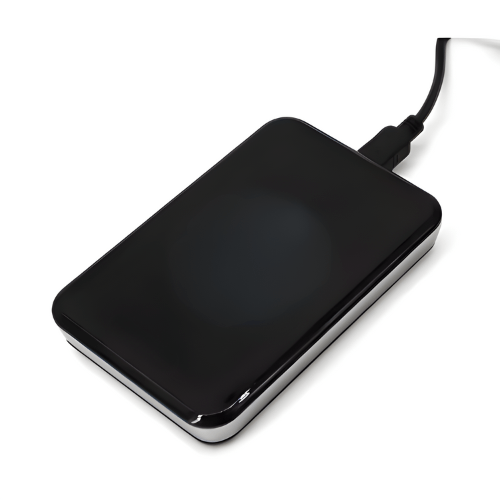

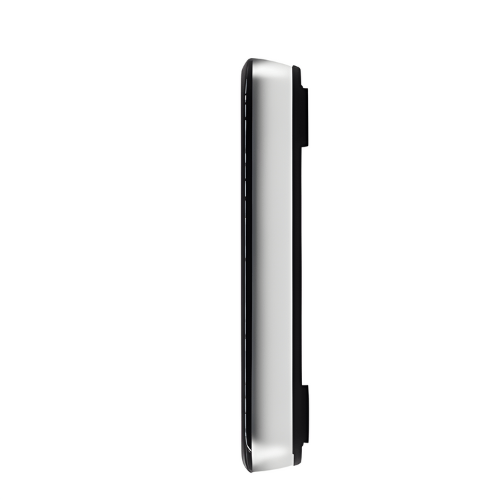

Amuse Tech Solutions EPC GEN2 Desktop UHF RFID Reader Writer Access Control Reader is a small desktop reader & writer, compatible with ISO 18000-6C and ISO 18000-6B standards. Working frequency 902 MHz to 928 MHz. It is a small integrated reader & writer which is used for short-distance identification or background card issuer management, very small and easy portable. Widely used in attendance or access control management, library management, consumer management and other fields.
Technical Specifications
| Working Frequency | CN standard (920 MHz to 925 MHz) US standard (902 MHZ to 928 MHz) Other frequency standards (customized) |
| Protocol | ISO18000-6C (EPC GEN2) ISO18000-6B |
| Operation Mode | Fixed Frequency or FHSS or Software Programmable |
| Antenna Parameter | 2 dBi circularly polarized antenna (built-in) |
| Output Power | 12.5 dBm to 26 dBm (Adjustable by software) |
| Reader &Write Range | Reading Rang (Max): 1.6 ft (0.5 m) (related to the card or the environment) Writing Rang (Max): 0.6 ft (0.2 m) (related to the card or the environment) |
| Working Mode | Active mode Passive mode Answer mode (Not recommend) |
| Voltage | DC + 5 V |
| Data Interface | USB to virtual keyboard input USB to virtual serial port (Customized) |
| Working Temp | -4 °F to 131 °F (-20 ℃ to 55 ℃) |
| Storage Temp | -40 °F to 185 °F (-40 ℃ to 85 ℃) |
| Size | 4.1 in x 2.5 in x 0.5 in (105 mm × 65 mm × 15 mm) |
| Net Weight | 7.05 oz (200 g) |
