Description
Overview

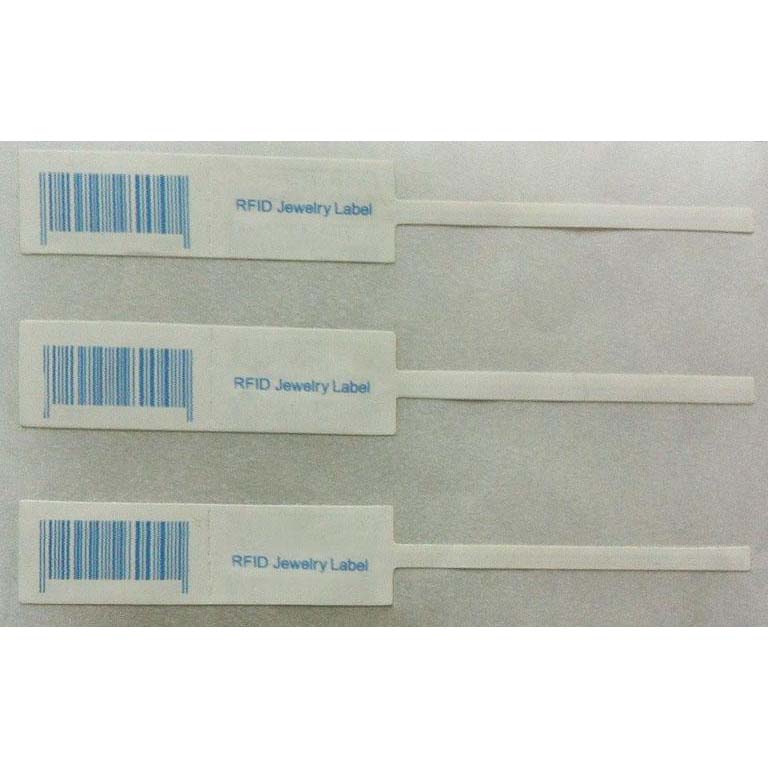

This UHF Gen 2 RFID jewellery tag features a small size, light weight and RoHS compliance. It is also compliant with ISO 18000-6C standard. This high performance RFID tag is specially designed for applications including jewellery tagging, inventory management and asset tracking. It has a large memory capacity of 512 bits for data storage. It also provides a long reading distance of up to 1.7 meters.
Key Features
- Small size and light weight
- EPC Class 1 Gen 2/ISO 18000-6C compliant
- RoHS compliant
Applications
- Jewelry Tracking
- Inventory Management
- Asset Tracking
Technical Specifications
| Frequency | 860 MHz to 960 MHz | |
| Protocol | EPC Class 1 Gen 2/ISO 18000-6C | |
| Memory | H3 | |
| USER | 512 bit | |
| EPC | 96 bit | |
| TID | 64 bit | |
| Read range | Less than 1.7 m | |
| Data retention | 100000 cycles | |
| Surface material | Paper or PET | |
| Size | 88 mm × 12 mm | |
| Antenna size | 63 mm × 11 mm | |
| Operating Temp | -40 °C to 85 °C | |
| Storage Temp | -5 °C to 30 °C | |
