Description
Overview

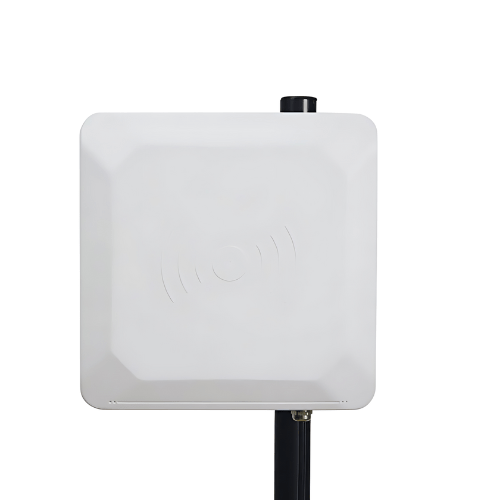

GAOTek RFID UHF reader integrated for parking access control is a compact reader with integrated 8 dBi circular polarized UHF far-field antenna. Based on an efficient and patented digital signal processing algorithm, the reader can reach a reading range of up to (6 m) and a writing range of 9.84 ft (3 m)
Technical Specifications
| Functions | |
| Operating Frequency | International (920 MHz to 925 MHz) USA (902 MHz to 928 MHz) Others (Customized Tag) |
| Protocol | ISO18000‐6C(EPCGEN2) ISO18000‐6B |
| Frequency Hopping Mode | Fixed Frequency Band and FHSS Software Programmable |
| Antenna | 8 dBi circular polarized antenna (Integrated) |
| Output Power | 0 dBm to 18 dBm (Adjustable) |
| Read or Write Range | Max Read Range: 19.6 ft (6 m), Max Write Range: 9.84 ft (3 m) Distance depends on Reader & Antenna output Power |
| Operating Mode | Master‐Slave Mode (Online Mode) Time Scheduled Modes Trigger Mode |
| Connecting Ports | |
| Power | 12 V |
| Communication Port | RS‐232 Wiegand Interface: Wiegand 26 & Wiegand 34 Supported RS‐485 10 M or 100 M Ethernet, GPRS, WIFI (for Customized Model only) |
| Trigger | 1 x Trigger Level Input |
| General Purpose | 2 x GPIO |

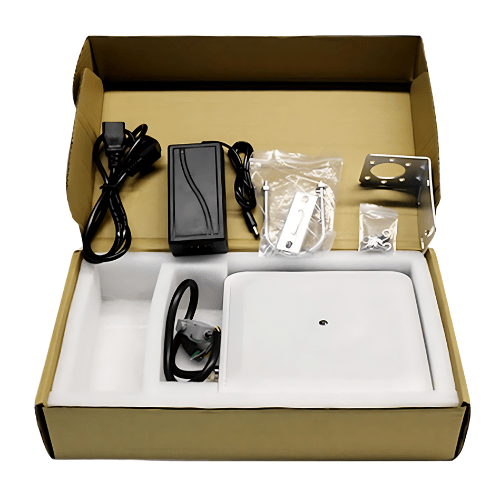

| Accessories | |
| Power Supply | AC 110 V to 220 V or DC 12 V |
| Cables | Power Cable RS232 Serial Cable |

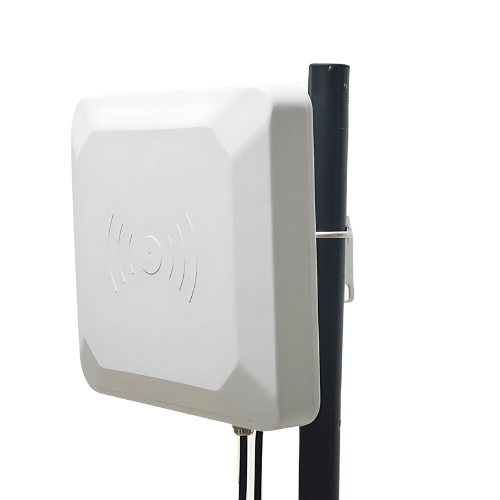

| Brackets | Pole Mount Adapter |
| Software Pack (Optional) | API Software Development Kits complete with VB, C# Sample Program |
| Operating Environment | |
| Operation | -4 ºF to 140 ºF (-20 ºC to 60 ºC) |
| Storage | -49 ºF to 185 ºF (-45 ºC to 85 ºC) |
| Physical Parameter | |
| Dimension | 8.94 in × 8.94 in × 2.36 in (227 mm × 227 mm × 60 mm) |
| Weight | 3.96 lb (1.8 kg) |
