Technical Specifications
| Chip | H9 |
| Frequency | 860 MHz to 960 MHz |
| Protocol | ISO/IEC 18000-6C EPC Class1 Gen2 |
| Material | Coated Paper or PET or Synthetic paper or Thermal paper or customization |
| Working Mode | Passive |
| IC Life | 100,000 Programming cycles, 10 years data retention |
| Antenna | Aluminum Etching 3.66 in × 0.75 in (93 mm × 19 mm) |
| Printing | Full Color Printing, Logo, Barcode, QR code, etc. |
| Storage Temperature Or Humidity | 73.4 °F to 41 °F (+23 °C to ±5 °C) or 50 % to ±10 % RH (Without condensation) |
| Operating Temperature Or Humidity | -13 °F to 122 °F (-25 °C to 50 °C) or 20 % to 80 % RH |

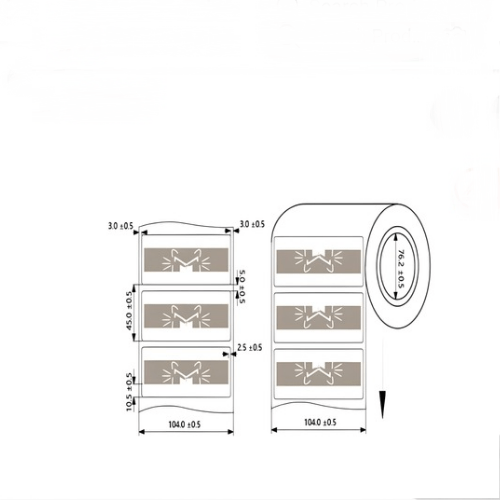

| Wet Inlay Or Label Size | 3.86 in × 1.57 in (98 mm × 40 mm) or customization |
