Description
Overview

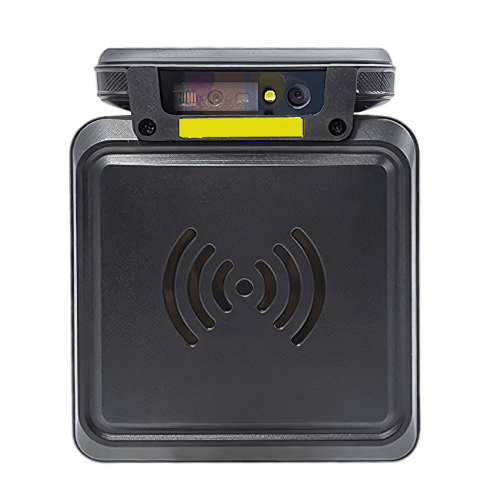

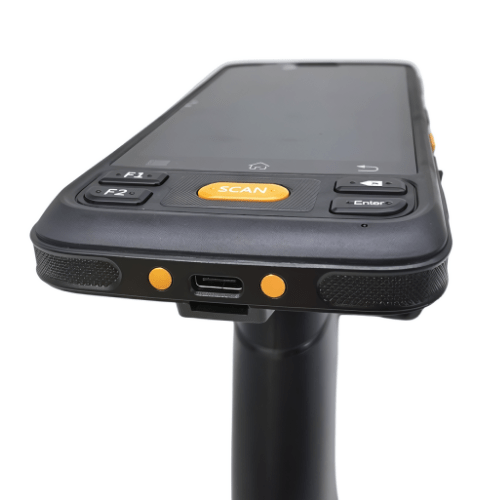

Amuse Tech Solutions Android Long Range Mobile PDA Handheld UHF RFID Reader is an Android rugged mobile computer. It can be configured with internal UHF module with 1 dBi circularly polarized antenna. With its powerful quad core processor and wireless connections, you can find this easy-to-deploy device an exceptionally valuable helper to increase working efficiency and productivity in retail, logistics and healthcare.
Technical Specifications
| CPU | Quad-core 2.0 GHz |
| RAM+ROM | 3 GB +32 GB /4 GB + 64 GB |
| Expansion | Supports up to 128 GB Micro SD card |
| Operating System | Android 9.0； Support SOTI Mobi control, safe Uem, etc. |
| Humidity | 5 % RH to 95 % RH noncondensing |
| Drop Specification | Multiple 5.9 ft (1.8 m) drops (at least 20 times) to the concrete across the operating temperature range |
| Tumble Specification | 1.6 ft (1000 m x 0.5 m) Falls at room temperature |
| Sealing | IP 65 per IEC sealing specifications |
| ESD | ± 15 KV air discharge ± 6 KV conductive discharge |
| US | 902 MHz to 928 MHz |
| Eu | 865 MHz to 868 MHz (ETSI EN 302 208) |
| Protocol Standard | EPC C1 GEN2 / IS018000-6C |
| Other Frequencies | Other multinational frequency standards (customizable) |
| Engine | Cm 2000-1, based on Impinj Indy R 2000 |
| Antenna Parameters | Linearly polarized antenna (1.8 dBi) or circularly polarized antenna (4 dBi) |
| Power | 1 W (30 dBm, supporting +5 dBm to +30 dBm adjustment) Optional 2 w (33 dBm for Latin America, etc.) |
| Reading Distance | 82.02 ft (25 m) (circular polarization, indoor) 49.21 ft (15 m) (circular polarization, outdoor open environment, Impinj mr 6 label) 68.9 ft (21 m) (linear polarization, indoor) 22.96 ft (7 m) (linear polarization, outdoor open environment) |
| Group Read Rate | Up to 300 tags per s (circular polarization) |
| Frequency | 13.56 MHz |
| Protocol | ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2 etc. |
| Range | 0.04 in to 3.94 in (10 mm to 100 mm) |
| Barcode Engine | Zebra: SE 965; Honeywell: N 4313 |
| Support Barcode Type | UPC/EAN, Code 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Code bar, MSI, RSS etc. |
| QR Code Engine | SE4710 / SE4750 / SE4750MR; N6603 |
| Support QR Code Type | PDF417, MicroPDF417, Composite, RSS, TLC-39, Data matrix, QR code, Micro QR code, Aztec, Maxi Code; Postal Codes: US Post Net, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX) etc. |
| Display | 12.7 cm (5.0 inches), IPS FHD 1280 x 720 (5.72 inch) Resolution: 1440 x 720 |
| Touch Panel | Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported |
| Power | Main battery: Li-ion, rechargeable, 10000 mAh Standby: over 500 hours Continuous use: over 12 hours (depending on user environment) Charging time: 3 Hours to 4 Hours(with standard adaptor and USB cable) |
| Expansion Slot | 1 slot for SIM card, 1 slot for SIM or TF card |
| Interfaces | USB 2.0 Type-C, OTG |
| Audio | Speaker, 2 microphones |
| Keypad | 5 front keys, 1 power key, 2 scan keys, 2 multifunctional key (5.0 inch) |
| Sensors | Gravity sensor, light sensor, proximity sensor, vibration motor |
| Operating Temp. | – 4 °F to 122 °F (- 20 °C to 50 °C) |
| Storage Temp. | -40 °F to 158 °F (- 40 °C to 70 °C) |
| Dimensions | 7.04 in x 3.15 in x 0.68 in (179 mm x 80 mm x 17.2 mm) |
| Weight | ＜23.7 oz (654 g) |
