Description
Overview

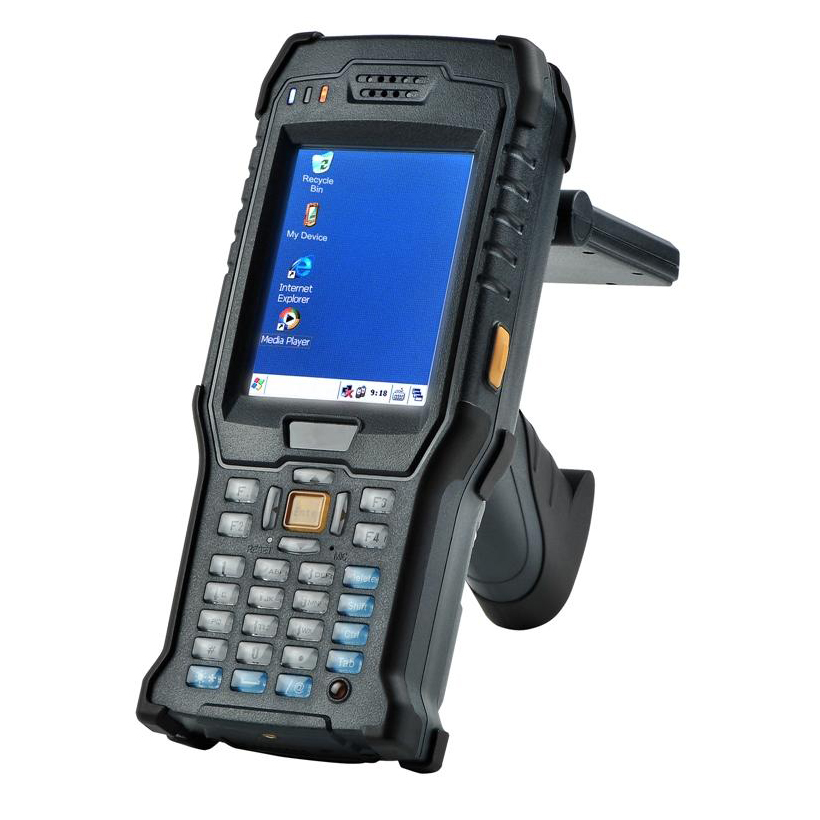

This advanced handheld RFID mobile terminal has full tag data read/write capabilities and is compliant with ISO18000-6C/EPC Class 1 Gen 2 protocols. It features 3.5 inch high definition touch screen, large memory capacity and operates under Windows CE 6.0 operating system. This ultra high frequency RFID reader/writer has been successfully used in applications such as logistics, anti-counterfeiting, warehouse management, vehicle inspection and fixed asset management. It utilizes USB 2.0, RS232 andRJ45 interfaces for data transfer. Used with a circularly polarized 4dBi antenna, it provides a long read range of up to 7 meters. In addition, it is rated to IP65 protection level and performs well even in demanding environments.
Key Features
- Long read range
- Compliant with ISO18000-6C/EPC C1 Gen 2 protocols
- Utilizes USB 2.0, RS232, RJ45 interfaces for data transfer
- Windows CE 6.0 operating system
- Performs well even in demanding environments
- Ergonomic design, easy to carry
Applications
- Logistics
- Anti-counterfeiting
- Warehouse Management
- Fixed Asset Management
- Vehicle Inspection
Technical Specifications
| System | |
| OS | Windows CE 6.0 |
| CPU | ARM11 processor, frequency: 800 MHz |
| Memory Capacity | 128MB DDR SDRAM, 256MB ROM |
| Extended Memory | 2G SD card |
| LCD Screen | |
| Screen Size | 3.5 inch |
| Display | Translucent TFT LCD (visible under the sun) |
| Indicator | RGB LED lights |
| Loudspeaker | Built-in controllable volume |
| Keyboard | |
| Standard | 0 to 9, a to z, A to Z, F1 to F4, ENTER, DELETE, SHIFT, CRTL, Tab, Space, Four arrow keys, Two side keys, RESET, ON/OFF |
| Symbolic Keys | *, #, ., @, / |
| Keys | 33 keys (Includes the handle buttons) |
| UHF RFID (Standard) | |
| Protocol of Space Interface | ISO18000-6C/EPC Class 1 Gen 2 |
| Operating Frequency | US: 902 to 928 MHz (FCC part 15) EU: 865 to 868 MHz (ETSI EN 302 208) China: 920 to 925 MHz Japan: 952 to 954 MHz |
| Antenna | Circularly polarized 4dBi antenna |
| Read Range | 0 to 7 m |
| HF RFID (Optional) | |
| Protocol of Space Interface | ISO14443/ISO15693 |
| Operating Frequency | 13.56 MHz |
| Read Range | 0 to 10 cm |
| 1D/2D Barcode (Optional) | |
| Read Mode | Laser Scanning |
| Read Depth | 45 mm to 450 mm |
| Read Code | 2D barcode: PDF417, QR Code, Data Matrix, Aztec, Maxiccde, LPCode, Chinese-Sensible Code 1Dbarcode:Code128.EAN-13,EAN-8,Code39,UPC-A,UPC-E,Codaba,China post 25,interleaved 2 of 5,ISBN/ISSN.Code93 |
| Pixels | 3.2 million, with auto AFI function |
| Scope | 3 m to 5 m |
| GPS (Optional) | |
| Cold-Start Time | Less than 60 s |
| Accuracy of Positioning | Less than 10 m |
| WiFi (Optional) | |
| Protocol | IEEE 802.11 b/g |
| Communication Distance | 100 m(Indoor);300 m(Outdoor) |
| Rx Sensitivity | -75 dBm |
| RF Power | Less than 100 mW |
| Bluetooth (Optional) | |
| Protocol | Version 2.0 |
| GPRS/GSM/CDMA Communications (Optional) | |
| GSM Bands | 850/900/1800/1900 MHz |
| Interfaces | |
| External Port | USB 2.0, RS232, RJ45 (Adapter Connection) |
| Expanded Slot | One SD/MMC slot, one SIM slot, one PSAM slot |
| Battery | |
| Capacity | 7.4 V 3500 mAh Li-Polymer Battery |
| Working Environment | |
| Operating Temperature | -20 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Relative Humidity | 5% to 95% RH (Non-condensing) |
| Level of Protection | IP65 |
| Drop Test | 1.5 m (4.9 inch) |
| Physical Parameters | |
| Size | 200 * 84 * 40 mm |
| Length of Handle | 110 mm |
| Weight | 850 g (Handle included) |
| Accessories | |
| Cable | USB cable, AC Power Adapter |
| Desktop Charger | It is able to charger the handset and battery at the same time. |
