Description

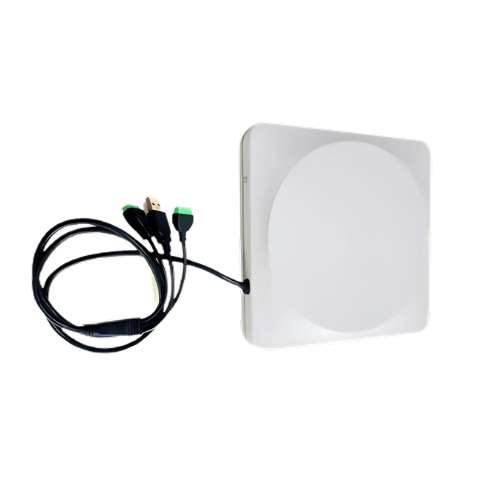

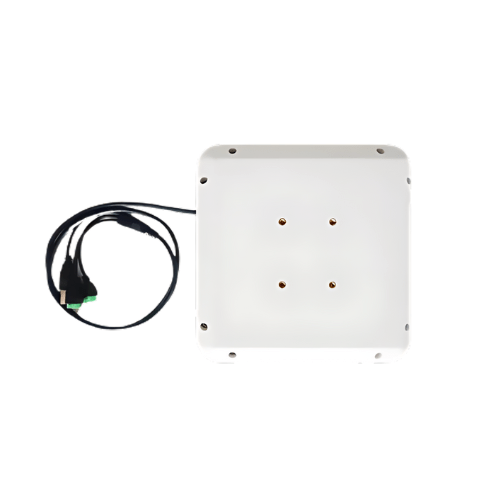

Experience our advanced RFID reader: supports ISO18000-6B/C, massive reading up to 50 tags, and flexible working modes. Explore now!
Technical Specifications
| Working Frequency | 865 MHz to 868 MHz or 902 MHz to 928 MHz |
| Massive Reading Quantity | 50 tags |
| Reading Distance | 19.6 ft (6 m) |
| Label Protocol | Support ISO18000-6B, ISO18000-6C (EPC GEN2), protocol electronic label |
| Frequency Hopping Pode | Broad spectrum frequency hopping (FHSS) or fixed frequency, which can be set by software |
| Working Mode | Automatic mode, trigger mode, interactive mode, etc. |
| RF Power | 0 dBm to 30 dBm (power software adjustable) |
| Antenna Parameters | 8 dBi circularly polarized antenna (built-in) |
| Support Interface | Standard RS232/RS485, Wiegand26/34 (Optional TCP/IP, WIFI GPRS) |
| Working Voltage | 12 V |
| Recognition Prompt | Beep or LED flash |
| Power Consumption | 1 W |
| Working Temperature | -4 °F to 158 °F (-20 °C to +70 °C) |
| Dimensions | 8.94 in x 8.94 in x 2.36 in (227 mm x 227 mm x 60 mm) |
| Gross Weight | 4.41 lb (2 kg) |
